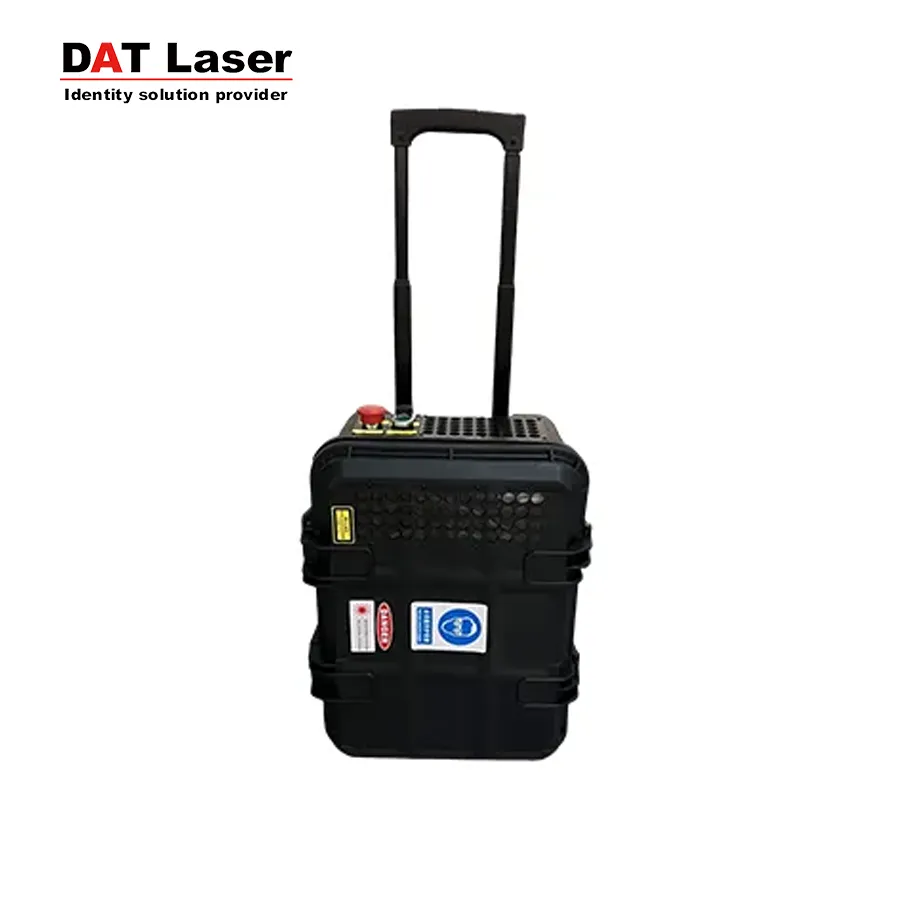

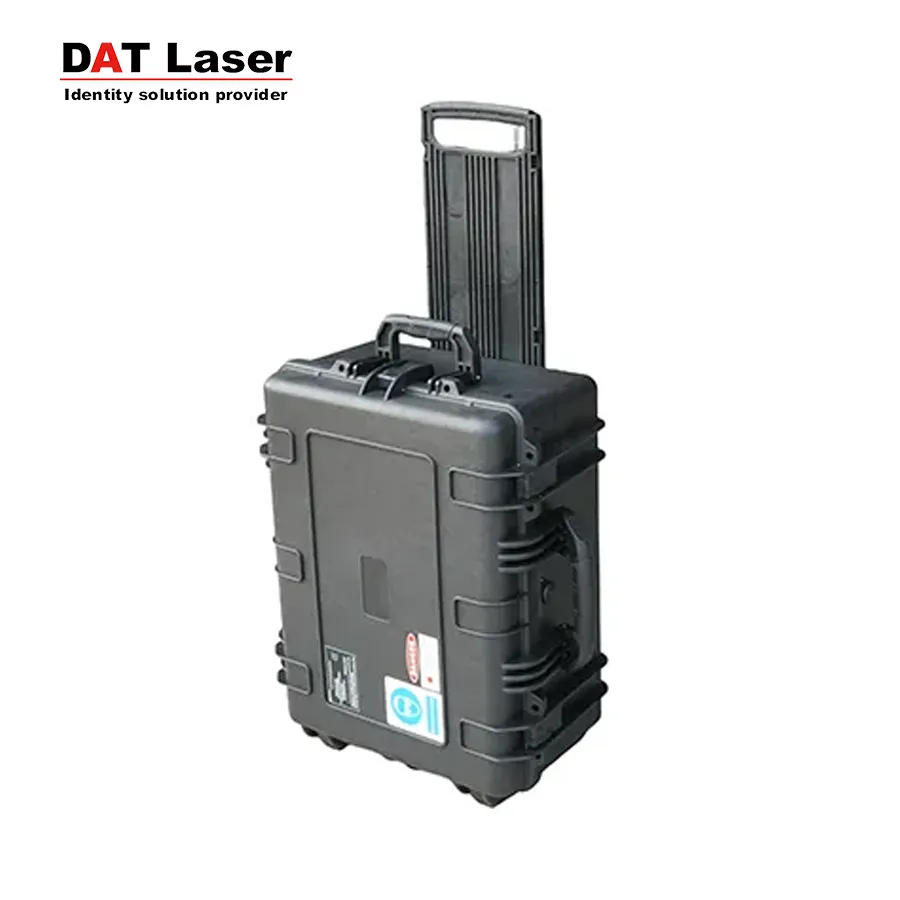

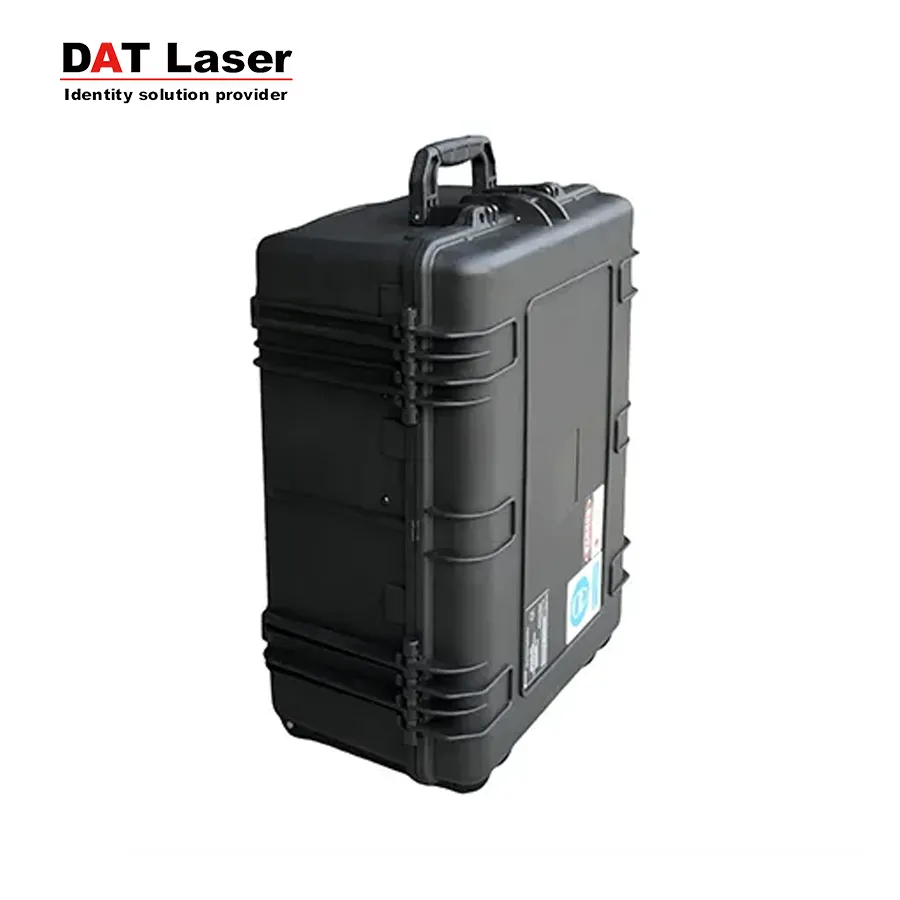

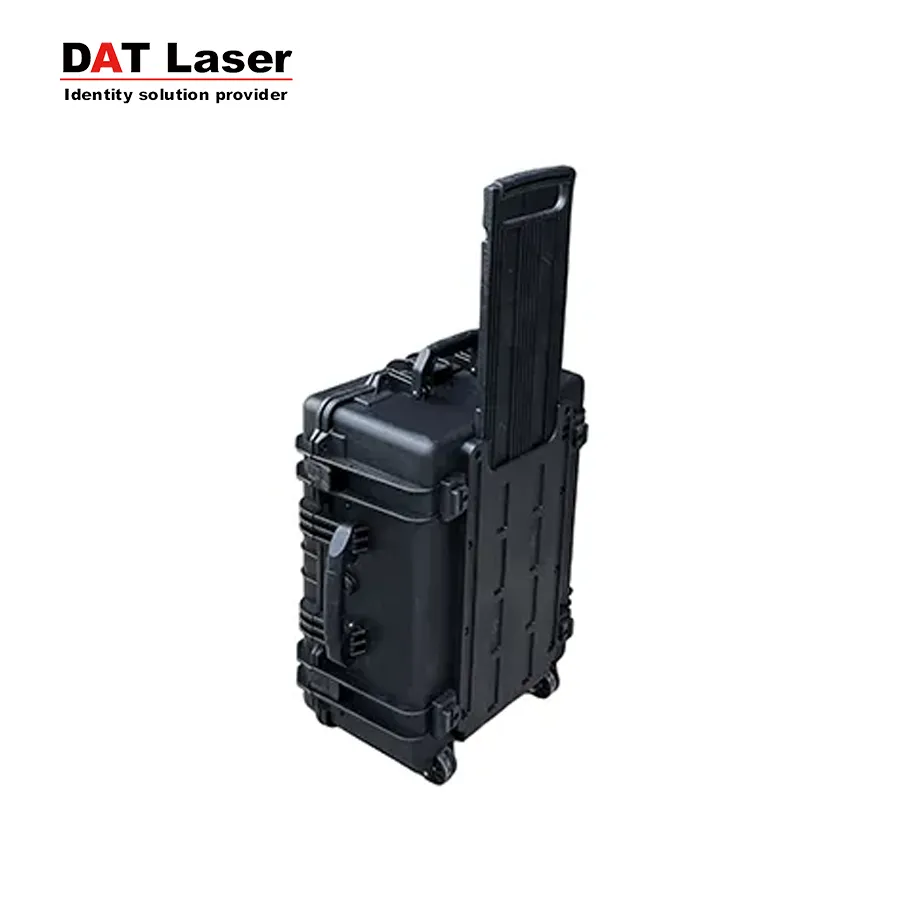

Box-Type Laser Cleaning Machine

100W/200W/300W/500W Box-Type Laser Cleaning Machine

Name: 100W/200W/300W/500W Box-Type Laser Cleaning Machine
Brand: HeBei Datang Laser Technology Co., Ltd.
Availability: InStock

Luggage box laser cleaning machine is suitable for various handheld cleaning scenarios and high-precision cleaning needs.

This series adopts a portable suitcase design, which can be checked in by high-speed rail or air. Can handle various cleaning scenarios.

Equipped with a wireless control screen and protective goggles, it is easy to operate and has good safety.

Luggage box laser cleaning machine is suitable for various handheld cleaning scenarios and high-precision cleaning needs.

This series adopts a portable suitcase design, which can be checked in by high-speed rail or air. Can handle various cleaning scenarios.

Equipped with a wireless control screen and protective goggles, it is easy to operate and has good safety.

Features Applications Specifications Advantage Download Brochures Relate Products

Features of Box-Type Laser Cleaning Machine 100W/200W/300W/500W

Precise control: By adjusting parameters such as laser power and scanning speed through an intelligent system, precise cleaning can be achieved without damaging the substrate.
Easy to operate: Non contact cleaning reduces labor intensity, supports automated operation, and improves work efficiency.

Wide applicability: Suitable for various industries such as aviation, shipping, cultural relic protection, automobiles, molds, etc., handling workpieces of different materials and complex shapes.
Cost savings: Reduce consumables and hazardous waste disposal costs, resulting in lower long-term usage costs.

Applications Scenarios of 100W/200W/300W/500W Box-Type Laser Cleaning Machine

Applicable Industries

Automotive industry

It can efficiently remove dirt and contaminants from surfaces such as body paint and engine parts, enhancing the appearance and performance of vehicles.

Aerospace

It is used for aircraft shell cleaning and maintenance, reducing cleaning time and labor costs to ensure flight safety.

Machinery Manufacturing

To remove rust and clean metal parts, prolong the service life of machinery and equipment, and improve work efficiency.

precision instrument

It is suitable for the cleaning of precision components such as mold manufacturing, electronic components, etc., to ensure surface quality.

Environmental protection field

Through laser technology implementation of chemical-free cleaning, reducing environmental pollution.

Other industrial scenarios

For example, the surface treatment of plastic products, rubber parts, and other non-metallic materials.

Specifications of Box-Type Laser Cleaning Machine 100W/200W/300W/500W

Type	GY-FLC100SL	GY-FLC200(S/M)L	GY-FLC300(S/M)L
Supply Voltage	Single-phase 220V±10%, 50/60Hz alternating current
Average laser power	≥100W	≥200W	≥300W
Laser type	Optical fiber laser source	Optical fiber laser source	Optical fiber laser source
Frequency adjustment range	1-3000kHz	1-3000kHz	1-4000kHz
Optical fiber length	5m	5m	5m
cooling	air cooling	air cooling	air cooling
scanning speed	30000mm/s	30000mm/s	30000mm/s
scanned area	0-100mm, continuously adjustable; Dual-axis supports 9 scanning modes.	0-145mm, continuously adjustable; Dual-axis supports 9 scanning modes.	0-145mm, continuously adjustable; Dual-axis supports 9 scanning modes.
Size of the machine	617mmx469mmx291mm
Weight of the machine	About 28Kg	About 28Kg	About 39Kg
Weight of the cleaning head	＜0.9Kg	＜0.9Kg	＜0.9Kg
operating mode	Handheld/Automated

Advantage of 100W/200W/300W/500W Box-Type Laser Cleaning Machine

Removable suction port bracket (optional): independent suction port design with flexible and adjustable height and angle, good cleaning effect.
Anti-interference design: Improve the anti-interference ability of the cleaning head through measures such as signal strengthening, signal line shielding layer, galvanometer encapsulation and metal shielding shell design. Ensure that the stability of light output will not be disturbed when robots and vacuum cleaners are integrated.
The design of the dust blowing air curtain at the front of the field lens effectively protects the field lens from dust or oil in the air from contaminating the field lens.
Lightweight design: the weight of the portable laser cleaning machine cleaning head is less than 1.5Kg, which is more conducive to long-term handheld operation.
