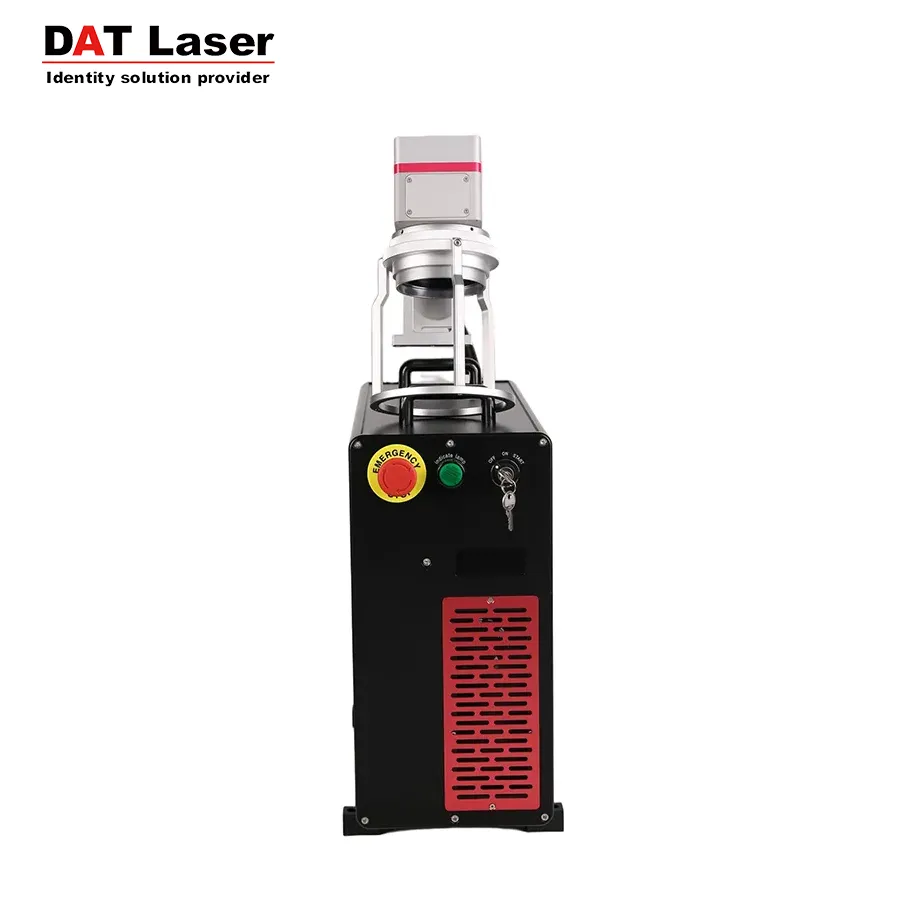

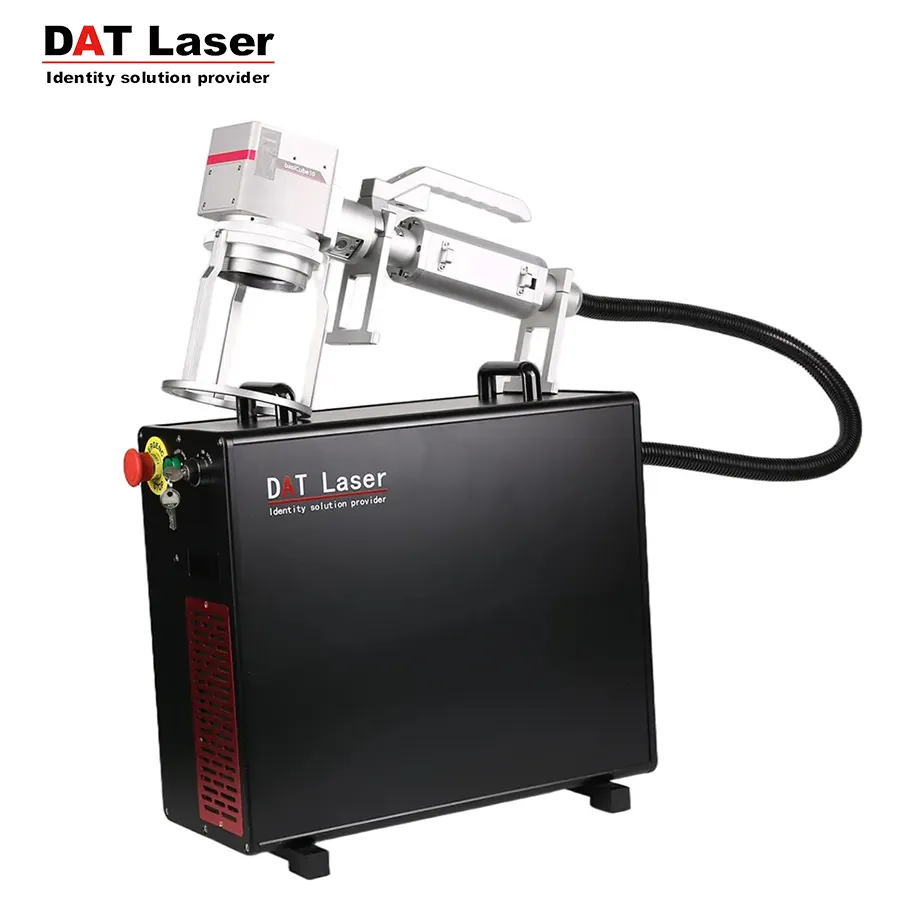

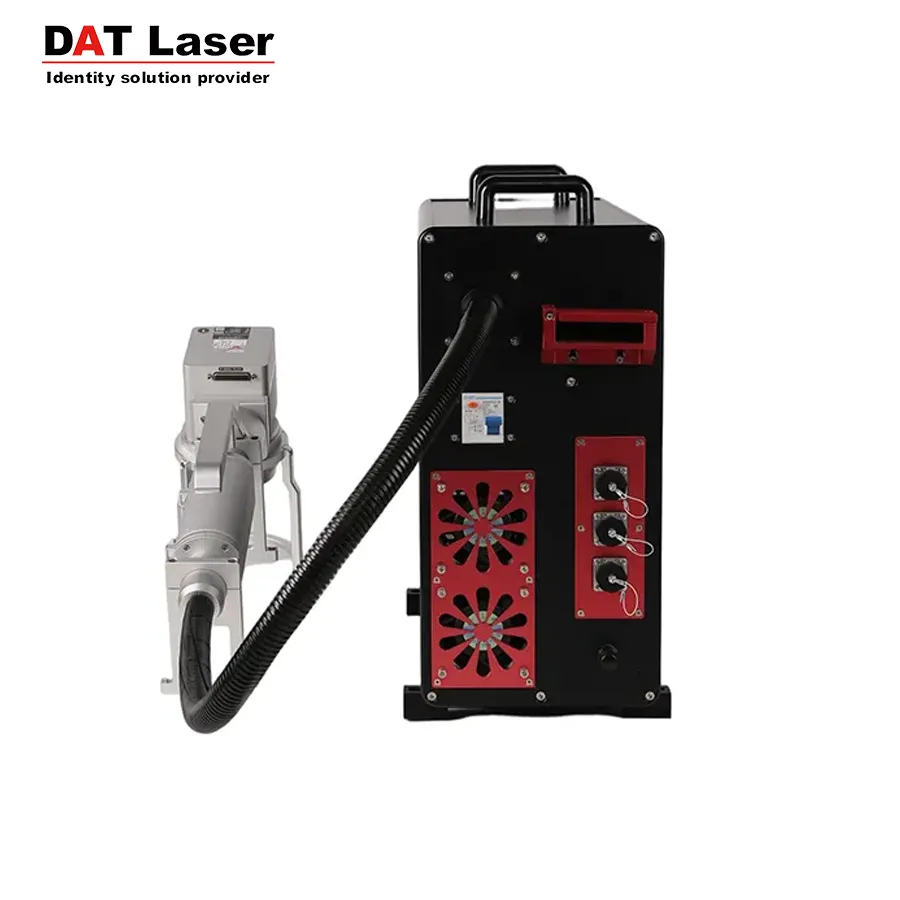

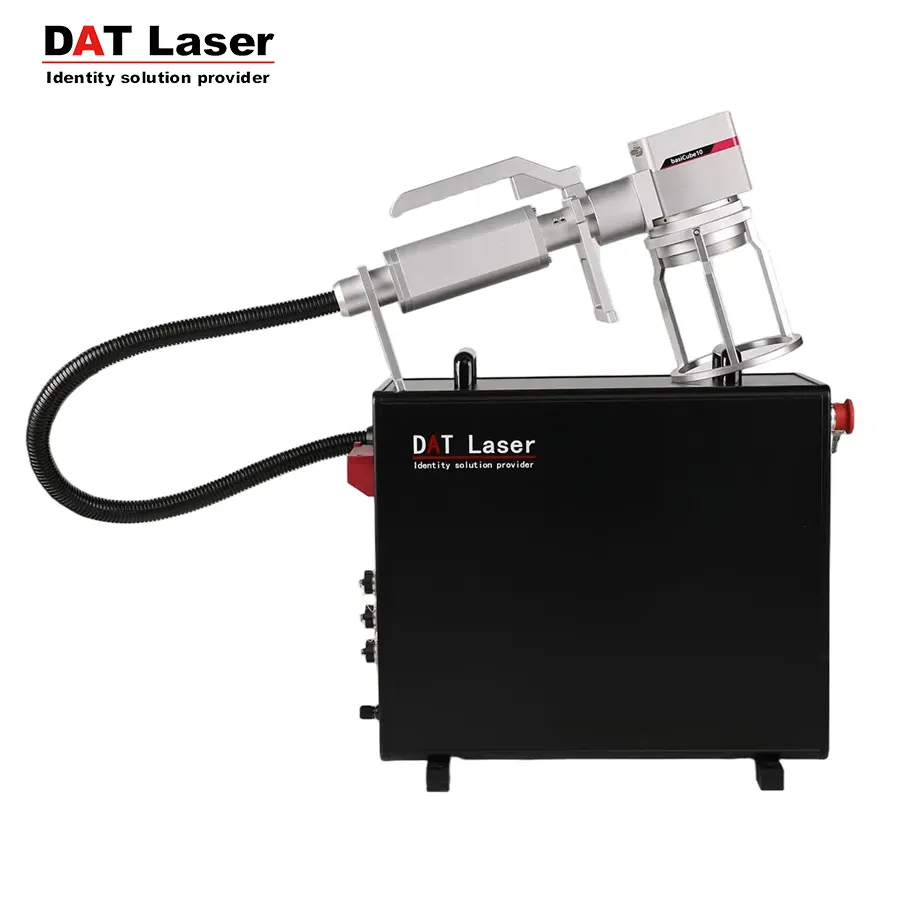

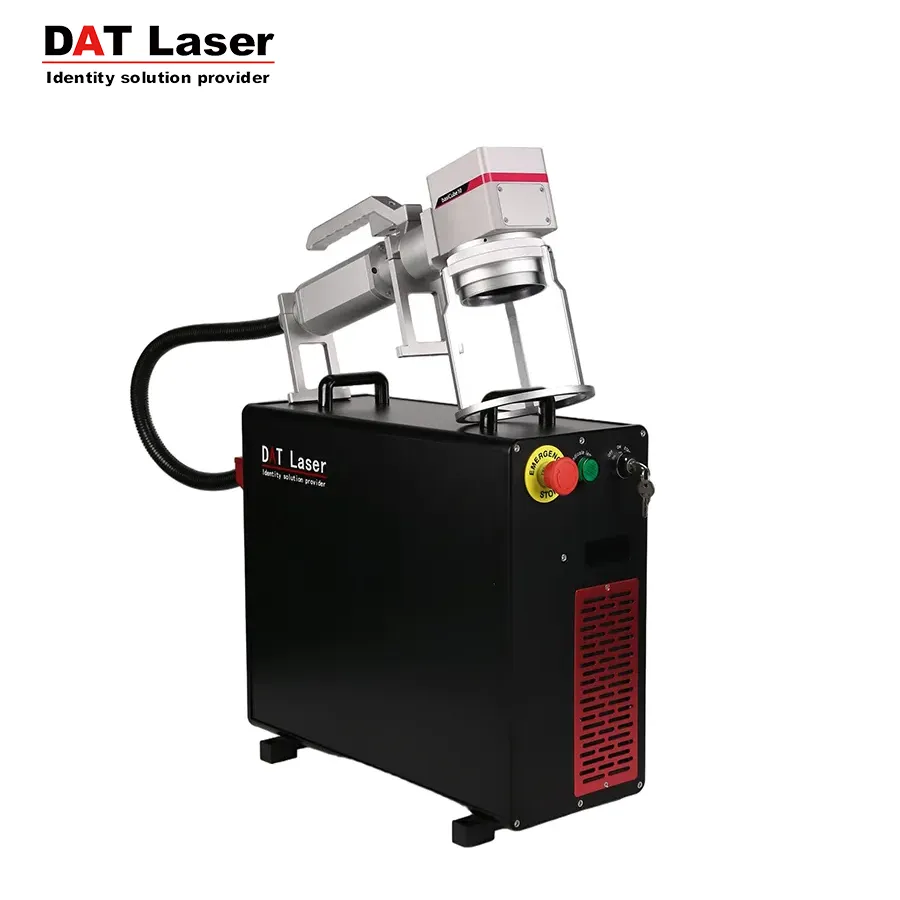

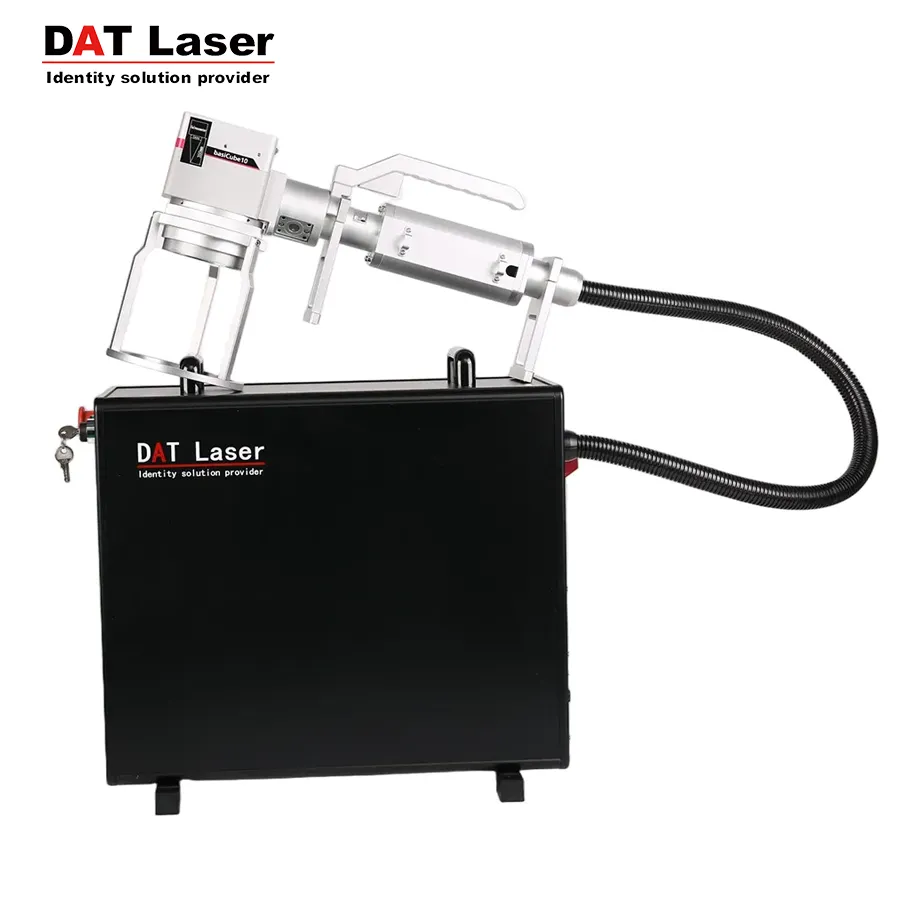

DAT Portable BX series Fiber Laser Marking Machine offer solutions for manufacturers who do not have enough marking position or space and need a small-sized machine for restrictive marking.
Achieve Small size by simple integration, greatly reduced installation work and costs, meanwhile largely increased freedom of positioning with the optimizing compact machine design making it easy for laser positioning and adjustment with reduced laser head stand.
DAT Portable BX series Fiber Laser Marking Machine offer solutions for manufacturers who do not have enough marking position or space and need a small-sized machine for restrictive marking.
Achieve Small size by simple integration, greatly reduced installation work and costs, meanwhile largely increased freedom of positioning with the optimizing compact machine design making it easy for laser positioning and adjustment with reduced laser head stand.

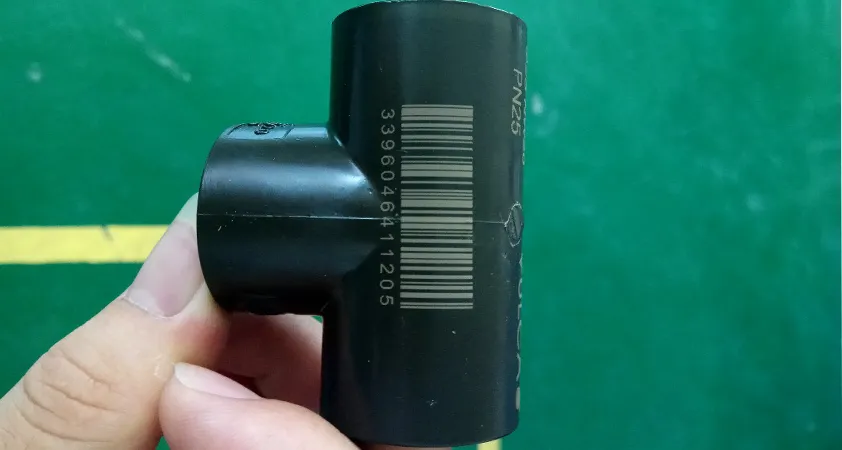

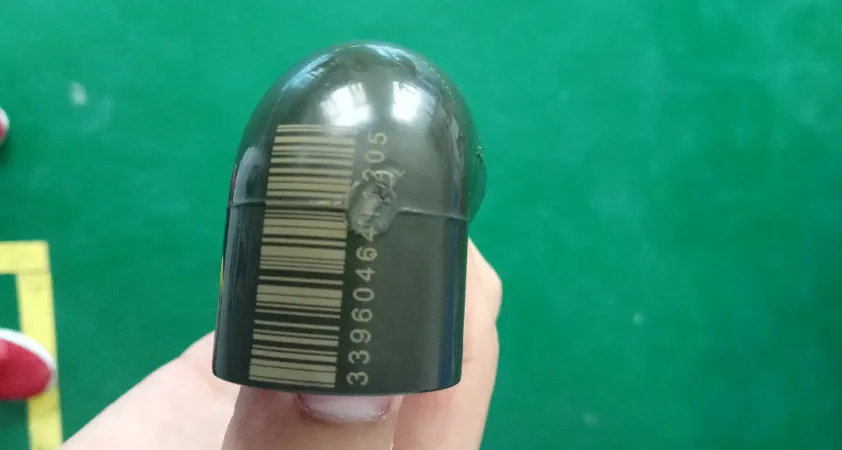

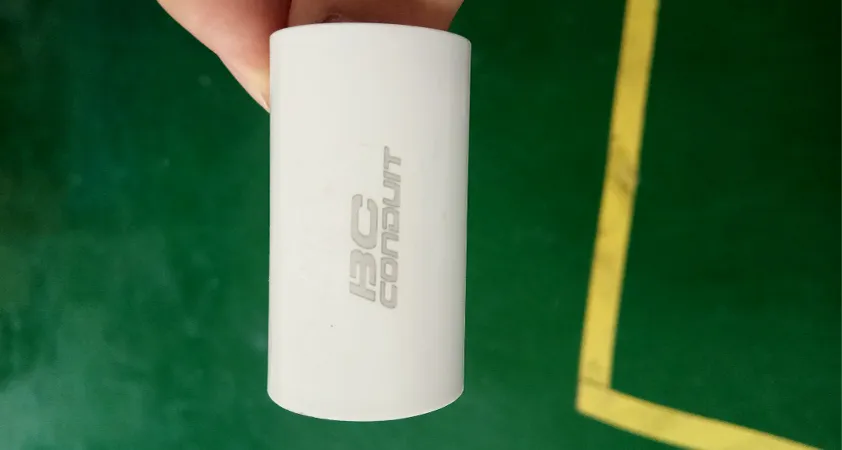

Wide range of applicable materials: engraving metal materials and some non-metallic materials, such as stainless steel, copper, ABS plastic, etc.
Non-contact marking: laser marking is non-contact processing, which avoids mechanical stress, protects the accuracy of the workpiece, is wear-free and pollution, and is easy to control by computer.
Safe and reliable: equipped with safety shield, laser radiation is within the safe range, safe to use.
Low energy consumption: high electro-oplortic conversion efficiency and low power consumption, which is 1/10 of the traditional marking machine.
Quality parts ensured high marking speed and high marking precision. Professional Leading Operating Systems, easy to operate, durable in use, no consumables and non-pollution, low cost make this laser marking machine China standing in the Leading Level of the Industry.
Technical Specification | ||

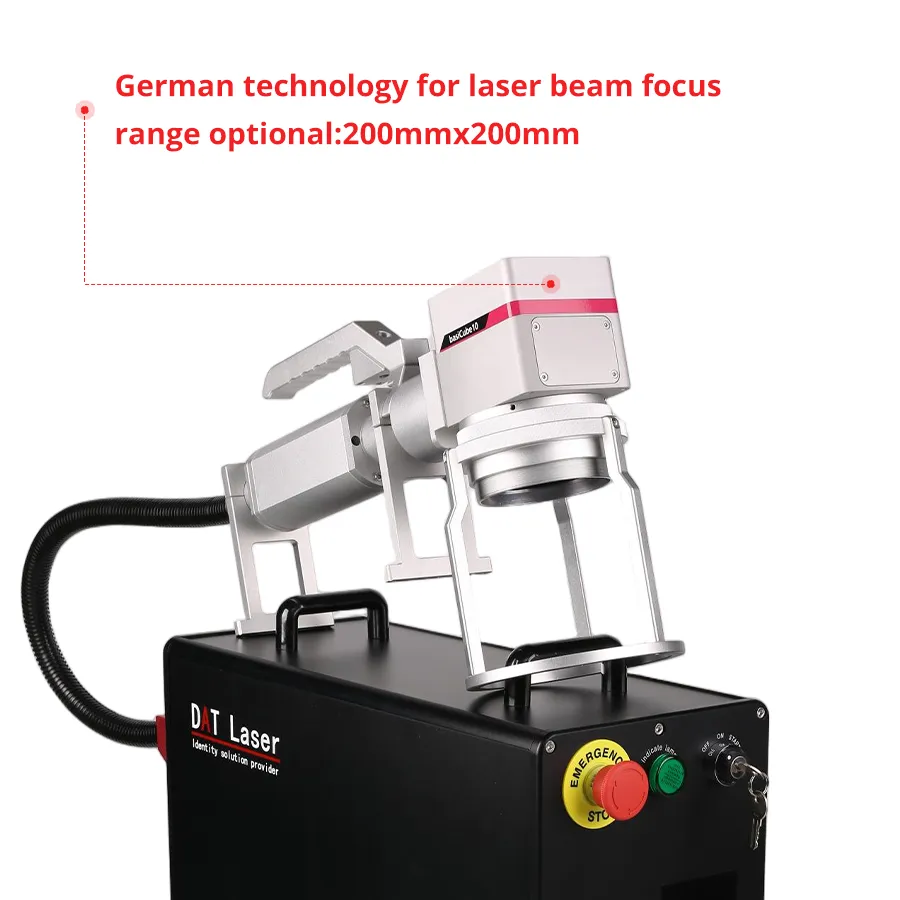

Marking Parameters | Marking Range | 170mm × 170mm （Range optional: 200mm × 200mm,300mm ×300mm etc.） |
Minimum Character | 0.2mm | |
Minimum Line Width | 0.05mm | |
Repetition Accuracy | ±0.003mm | |
Engraving Linear Speed | ≤7000mm/s | |
Laser Features | Type / Wavelength | Fiber Laser / 1064nm |
Output Power | 30W | |
Power Stability (8H) | <±1% rms | |
Beam Quality M2 | < 2 | |
Repetition Frequency | 20kHz ～ 200kHz | |
Working Environment | Cooling | Air cooling |
Operating Temperature | 15℃ ~ 50℃ | |
Humidity Requirement | 40% ～ 80%, non-condensing | |
Power Requirement | 110V~220V/50~60Hz/5A | |
Total Power Consumption | ≤ 500 w | |
Parts description | Adopts IPG // Raycus fiber laser andself-development system. | |
Achieve Small size by simple integration, greatly reduced installation work and costs, meanwhile largely increased freedom of positioning with the optimizing compact machine design making it easy for laser positioning and adjustment with reduced laser head stand.
An optimized system can achieve easy operation, No need for long time training，reduce trainning cost for you.User-friendly interface can greatly reduce operational errors.
No unnecessary complex mechanical units, achieving easy maintenance.
Large marking area, marking area size optional.
