Fiber Laser Marking Machine

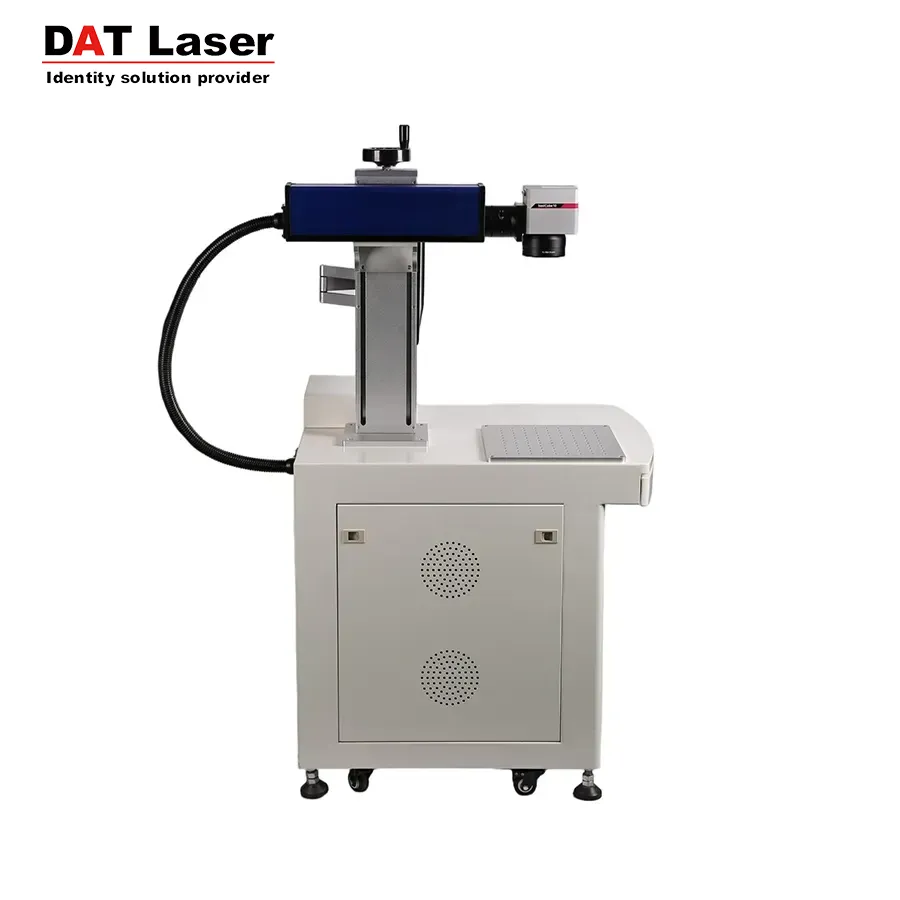

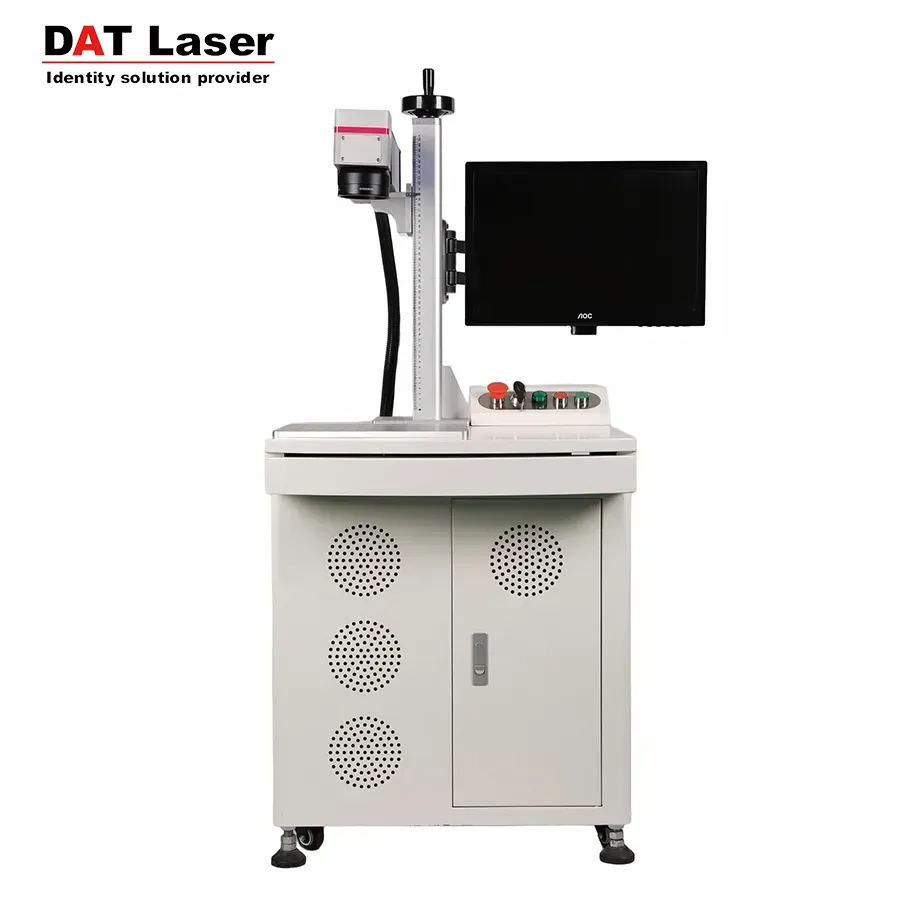

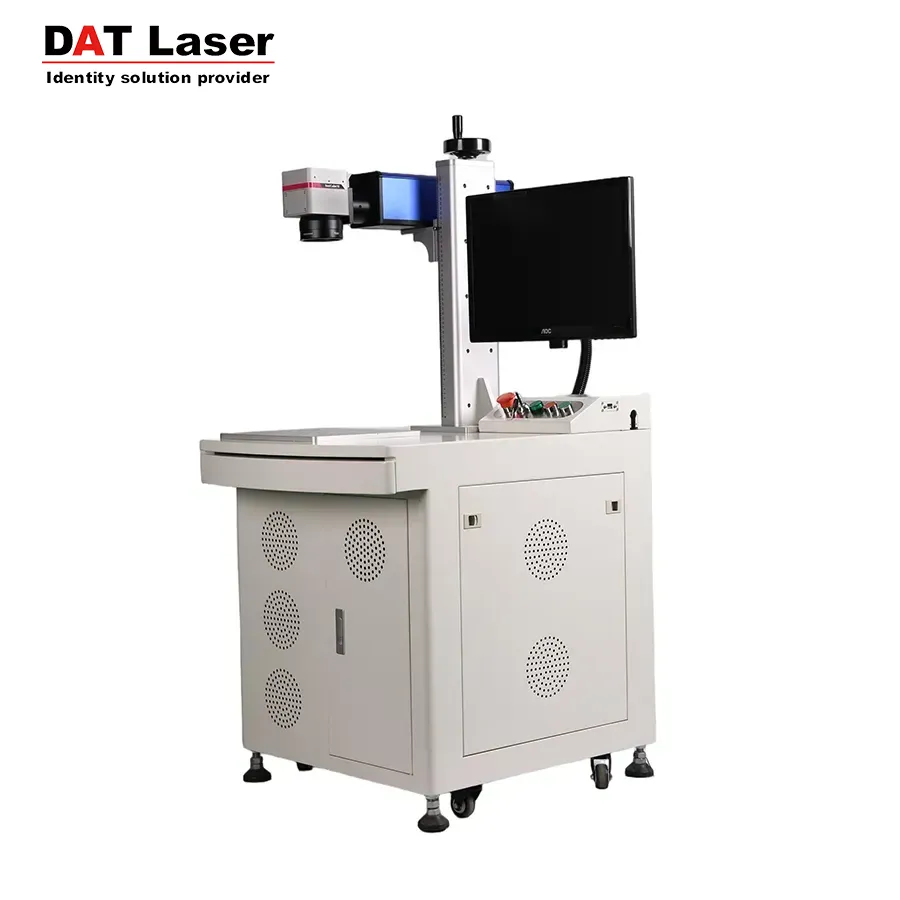

20W/30W/50W Table Fiber Laser Marking Machine

Name: 20W/30W/50W Table Fiber Laser Marking Machine
Brand: HeBei Datang Laser Technology Co., Ltd.
Availability: InStock

YLP-20/YLP-30/YLP-50

Efficient and clear marking effect

DAT desktop laser marking machine is specially designed to engrave high contrast, easy to read permanent codes, text, and graphic marks on various materials at an ultra fast speed, assisting in product serialization production, thereby achieving product traceability, anti-counterfeiting, and personalized customization. Widely applicable to plastic, metal, and a large number of industrial products of various shapes.

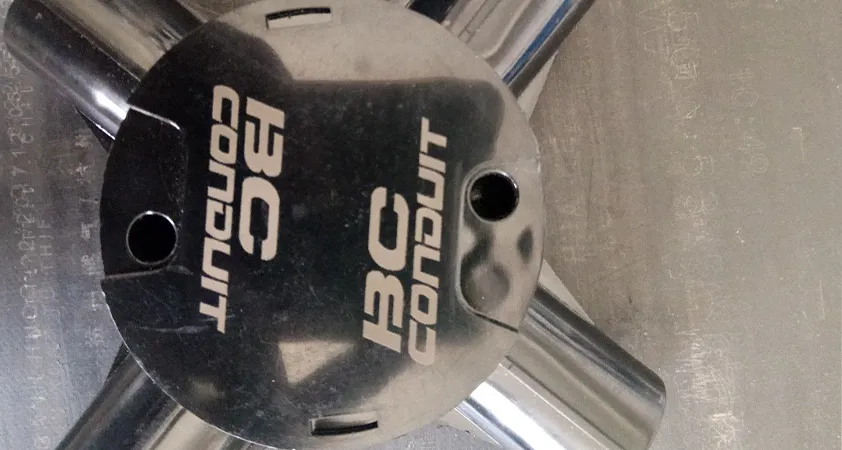

Efficient and clear marking effect

Features Applications Specifications Advantage Download Brochures Relate Products

Features of 20W/30W/50W Table Fiber Laser Marking Machine

Stability and durability

DAT considered the working life when designing laser marking and coding machines, achieving low maintenance requirements, supporting continuous operation, and reducing downtime.
Equipped with high-quality laser sources, it has a long service life, ensuring high performance and reliable stability for long-term operation, thereby avoiding frequent replacement or maintenance and greatly reducing downtime caused by machine failures.

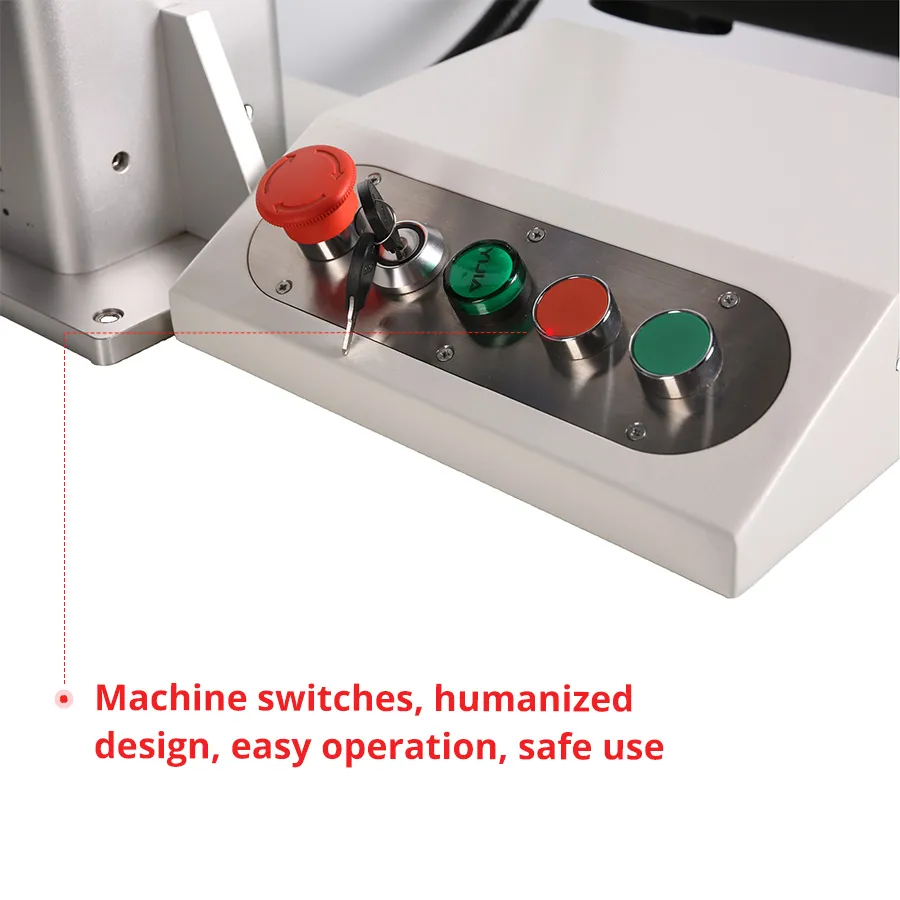

Humanized operating system, no consumables, environmentally friendly

Professional Leading Operating Systems,ensured high marking speed and high marking precision easy to operate,durable in use, no consumables and non-pollution,low cost make this machine from the leading fiber laser marking machine manufacturer standing in the Leading Level of the Industry.

Diversified and efficient marking solution

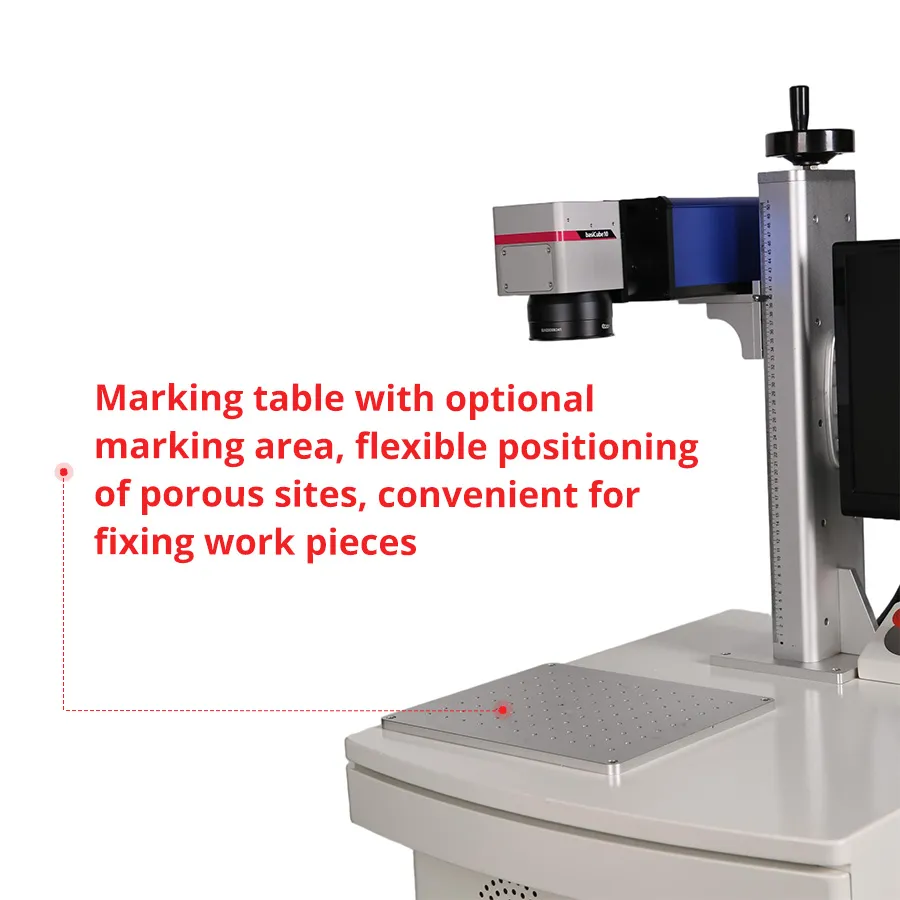

The DAT desktop laser marking machine supports multiple sizes of marking workbenches, with specific dimensions of 110 * 110 mm(optional150*150mm/200*200mm/300*300mm. Suitable for marking industrial products of multiple sizes and shapes. Support manual handling and marking of individual products, and can also be equipped with conveyor belts for assembly line production.

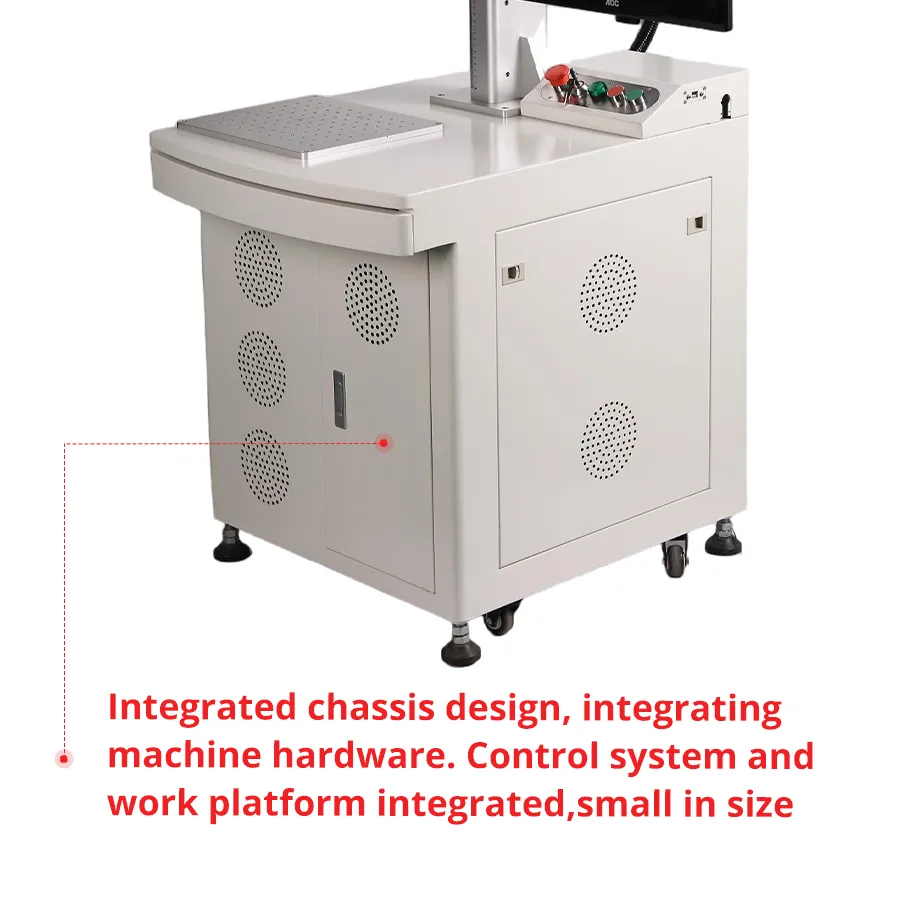

Features of 20W/30W/50W Table Fiber Laser Marking Machine

Applications Scenarios of 20W/30W/50W Table Fiber Laser Marking Machine

Applicable Industries

Electrical engineering and electrical part and component
Mobile (cover, battery, keyboard, phone case)
Jewellery (ring, necklace, bracelet),eyeglass, clocks and craft

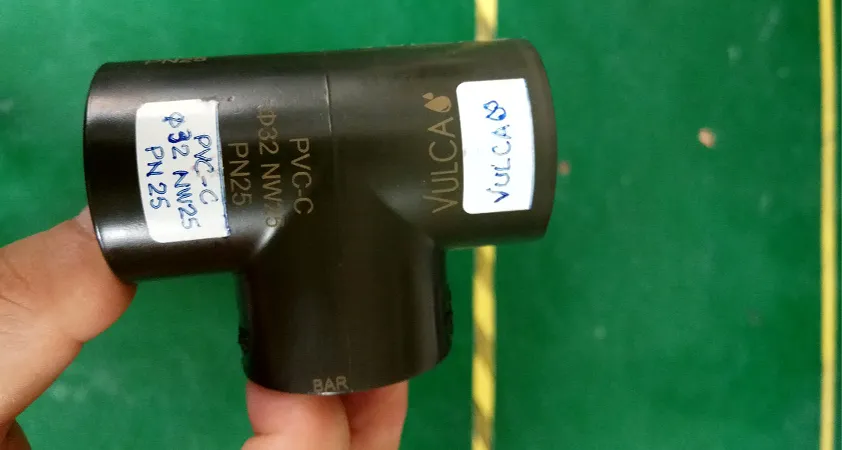

Building materials, pvc pipe
Car motor car spare part
Insturment and meters and cutting tool

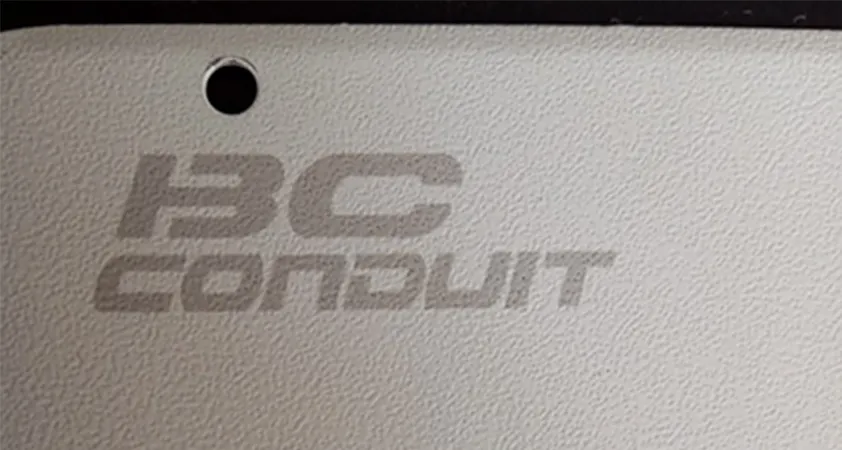

Plastic case
Hardware fitting and accessory
Sanitary appliance
Food and beverage
Medicine package and medical instrument
Solar pv industry

Specifications of 20W/30W/50W Table Fiber Laser Marking Machine

Technical Specification
Marking Parameters	Working area	110110mm(optional150150mm/200200mm/300300mm)
	Minimum Character	0.2mm
	Minimum Line Width	0.05mm
	Repetition Accuracy	±0.003mm
	Engraving Linear Speed	≤7000mm/s
Laser Features	Type / Wavelength	Fiber Laser / 1064nm
	Output Power	10,20,30,50W
	Power Stability (8H)	<±1% rms
	Beam Quality M2	< 2
	Repetition Frequency	20kHz ～ 200kHz
Working Environment	Cooling	Air cooling
	Operating Temperature	15℃ ～ 45℃
	Humidity Requirement	40% ～ 80% , non-condensing
	Power Requirement	110V~220V/50~60Hz/5A
	Total Power Consumption	≤ 500 w
Size	Width 620mm × length60mm × height 1380mm
Weight	≤ 100 Kg

Advantage of 20W/30W/50W Table Fiber Laser Marking Machine

Advantage for machine and marking content:

Small size, low weight, equipped with universal wheels for easy mobility,easy to move and save your space.
Professional Operating Systems, Easy to operate and learn.
Plastic, mental etc various material can be marked.
Text, logos, barcodes, QR codes, and serial numbers etc various formats can be quickly and accurately marked.
Durable, Easy to maintain, No consumables,save your production cost.
12 monthes warranty and lifetime technical support.
