It's small in size and Light in weight, but offer high-precision marking effect and simple operation systerm, adopt red light positioning, Auto-focus, easier operation, clearer marking.
It's small in size and Light in weight, but offer high-precision marking effect and simple operation systerm, adopt red light positioning, Auto-focus, easier operation, clearer marking.
Compact and easy to carry: The equipment is light and portable, suitable for different working environments and locations.
Flexible operation: Handheld design to mark large or inconvenient workpieces from multiple angles.

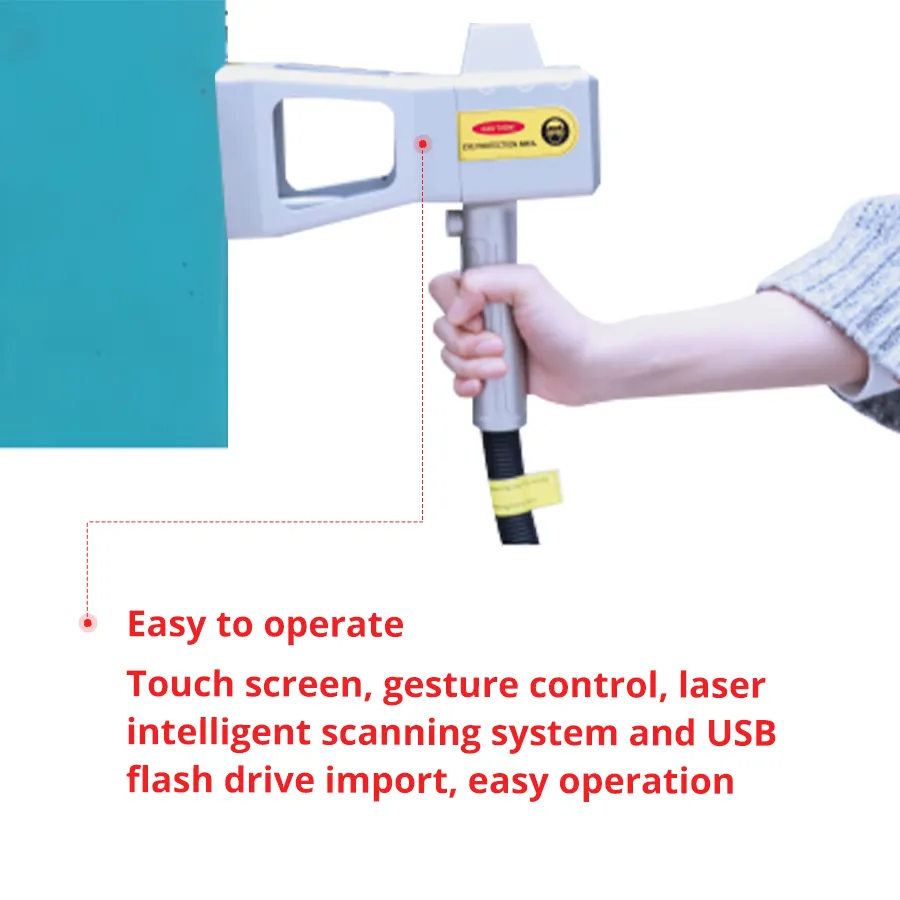

Easy to use: intuitive interface, easy to operate, no professional skills required.
Adapt to complex environments: It can work normally in harsh environments such as high temperature, vibration and dust.
Quality parts ensured high marking speed and high marking precision. Professional Leading Operating Systems, easy to operate, durable in use, no consumables and non-pollution, low cost make this machine standing in the Leading Level of the Industry.
Product Type | LMB20/LMB30/LMB50 |
Material of the whole machine | engineering plastic |
Laser type | Fiber laser generator |
laser power | 20W/30W/50W |
wavelength | 1064nm |
Maximum pulse energy | 0.7mJ |
Adjustable frequency range | 1-600kHz |
Marking method | High precision dual dimensional scanning |
Marking speed | ≤7000mm/s |
Operation interface | 7-inch touch screen &Linux operating system |
Cooling system | Air cooling inside |
Marking line type | Both dot matrix and vector marking |
Marking scope | 60mm*60mm(standard)/100mm*100mm(optional) |

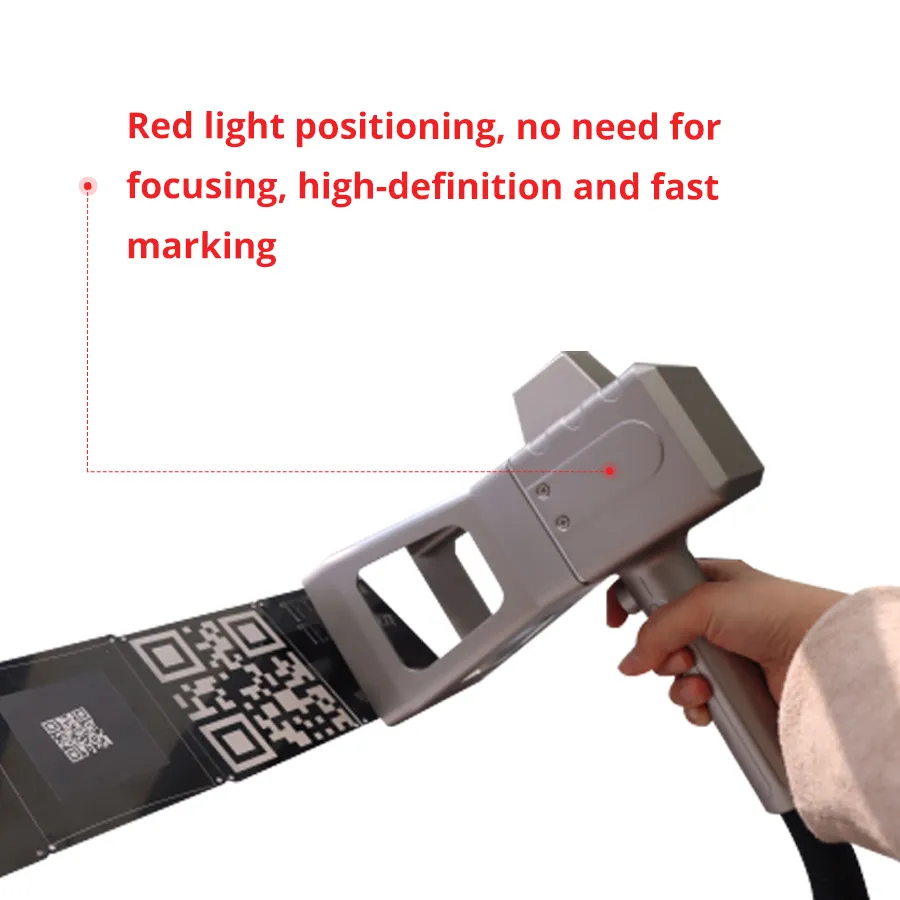

locate mode | Red light positioning |
Number of marked character lines | No limit within the marking range |
Marking speed | 600 characters/second (depends on product material and printing content) |
language | Simplified Chinese, English, Korean, German, Arabic numerals, etc. |
file format | png、jpg、bmp、dxf、plt、svg |
Barcode/QR code | CODE25, CODE39, CODE49, CODE93, CODE126, CODE128, EAN13, EAN128, EAN417, CODBAR, UPCA, UPCA-CHK, UPCE-CHK, DataMartrix, QRCode etc. |
power supply | 220V/110V |
maximum power consumption | 20W: 120W/30W 150W/50W: 200W |
machine net weight | Lithium battery version: 9.5KG Power supply version: 8KG |
Continuous working time at full charge and full power | Lithium battery version: about 4 hours Power supply model: about 2 hours(50W) |
charging time | 1 hour and 30 minutes (Lithium battery) |
Working temperature | 0-40℃ |
Humidity | 30-85RH(No condensation) |
outline dimension | 330mm*280mm*200mm |
Marking type | QR code, barcode, Chinese, English, date logo, Patterns, etc. |

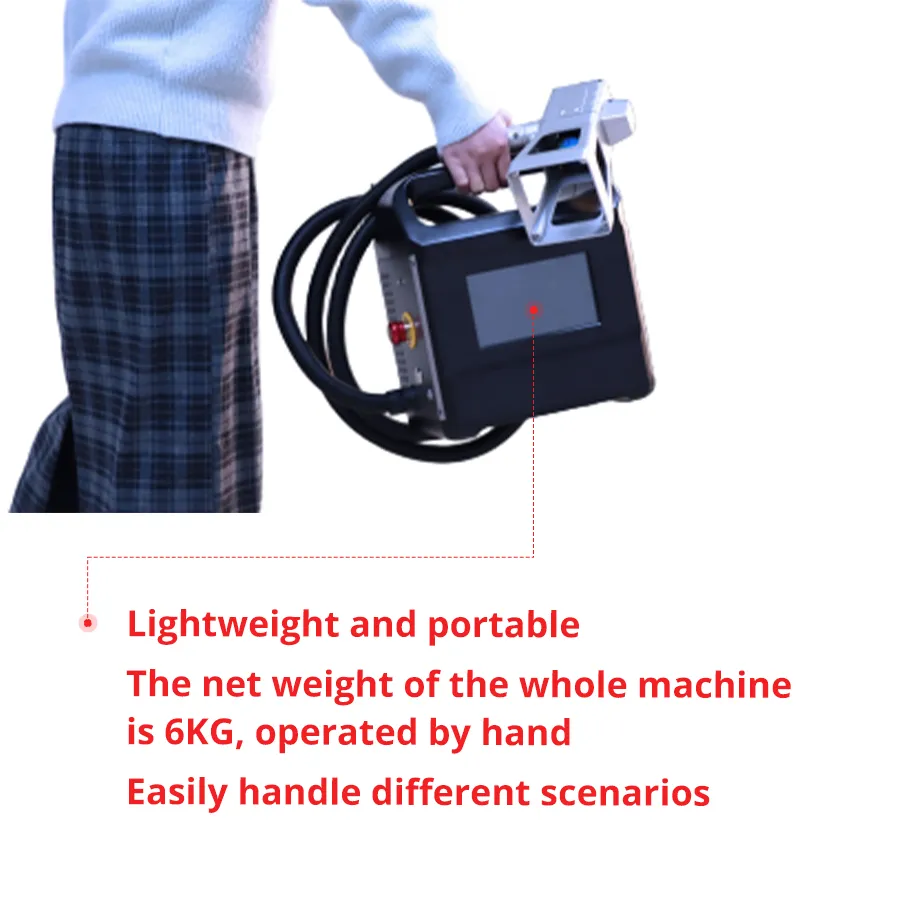

Small and Light (6.4KG).
Supports multiple format& types.
Supports offline marking of lithium batteries (6-8H).
Supports auto-start& stop function,extending the life of lithium battery.
Laser and Galvanometer motor can have a longer working life.
