Fiber Laser Engraving Machine

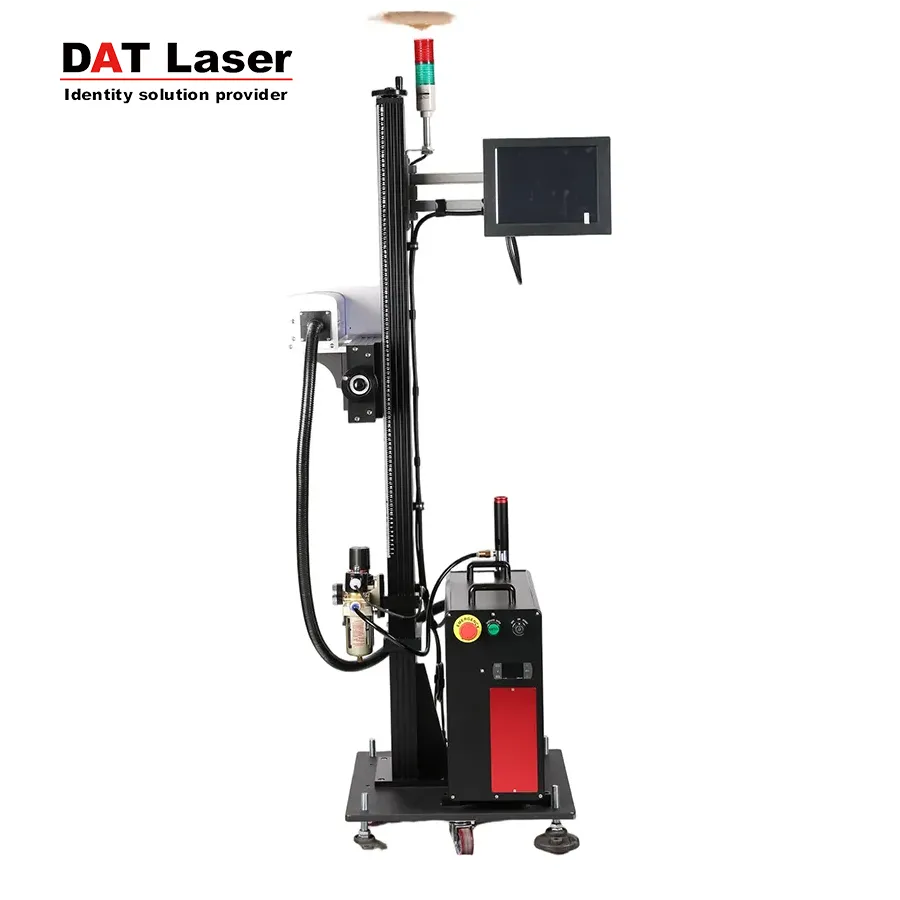

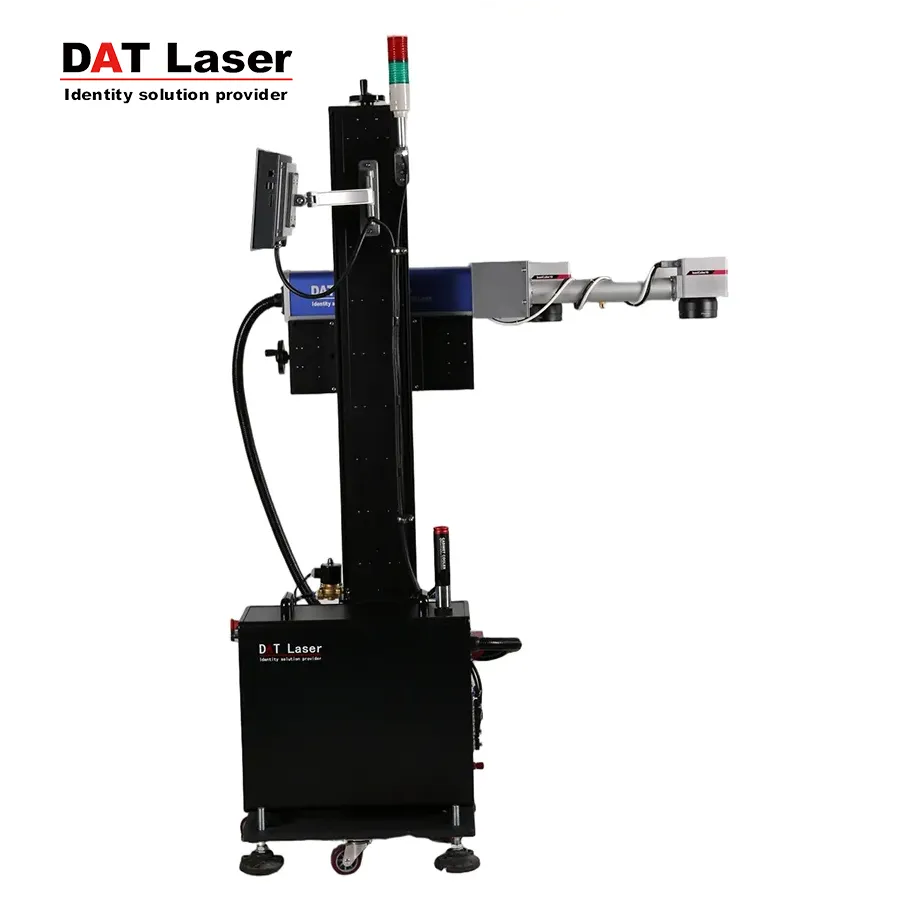

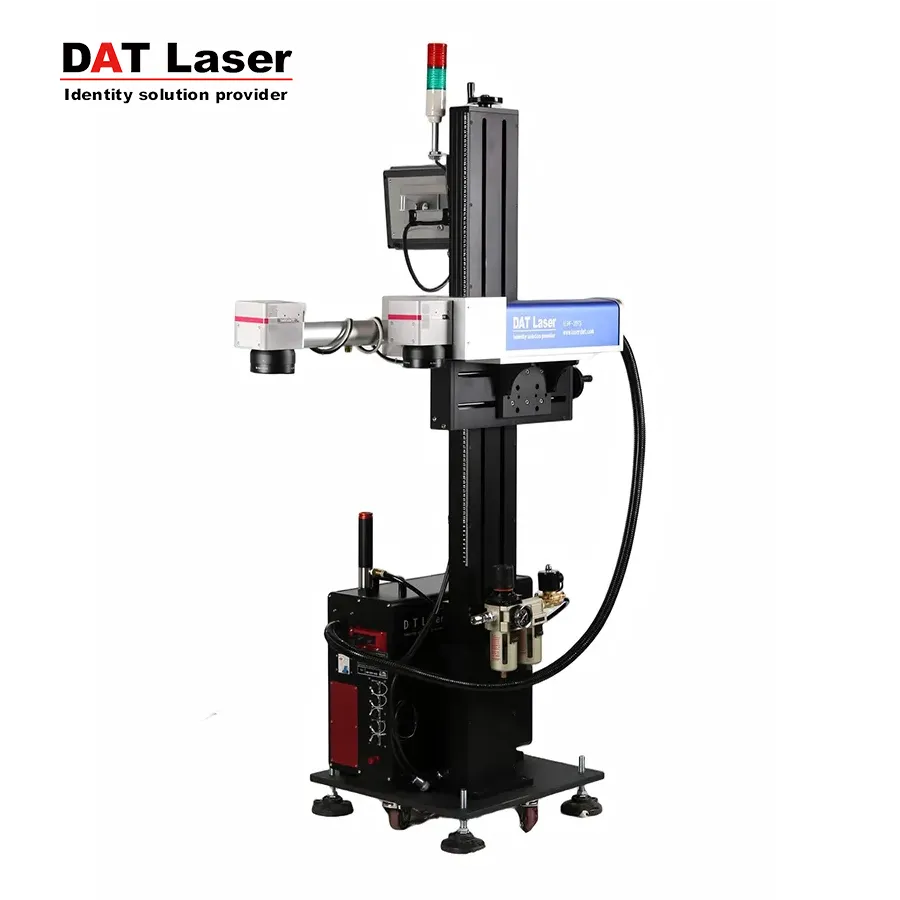

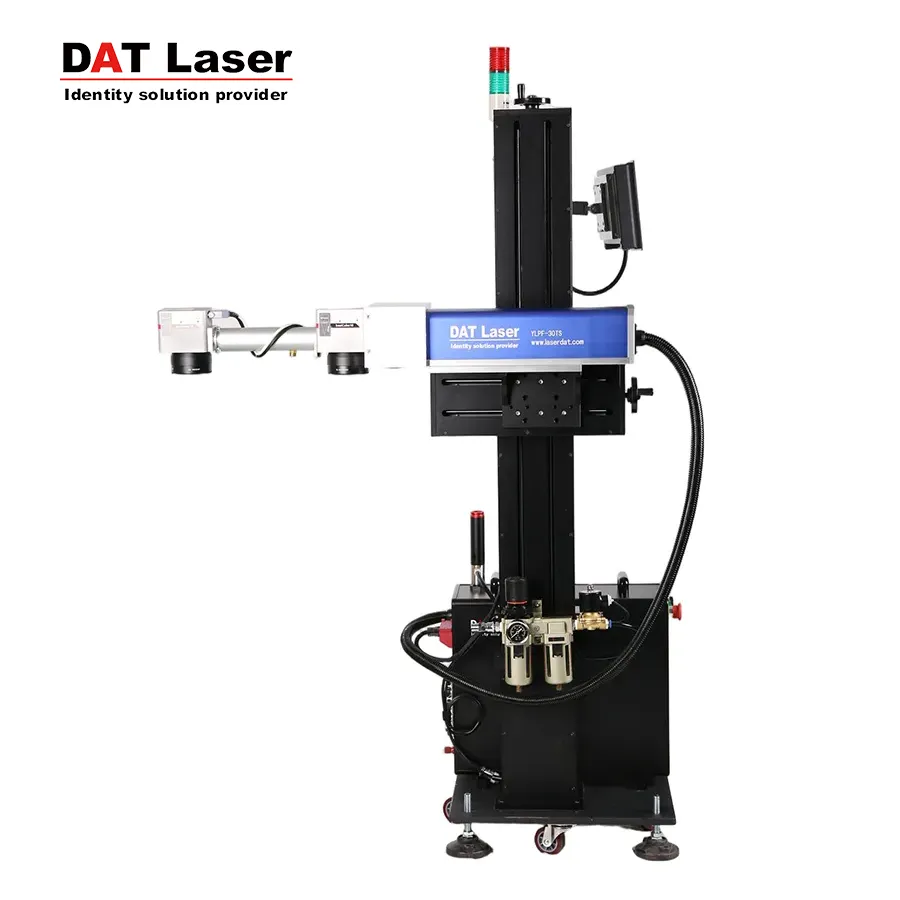

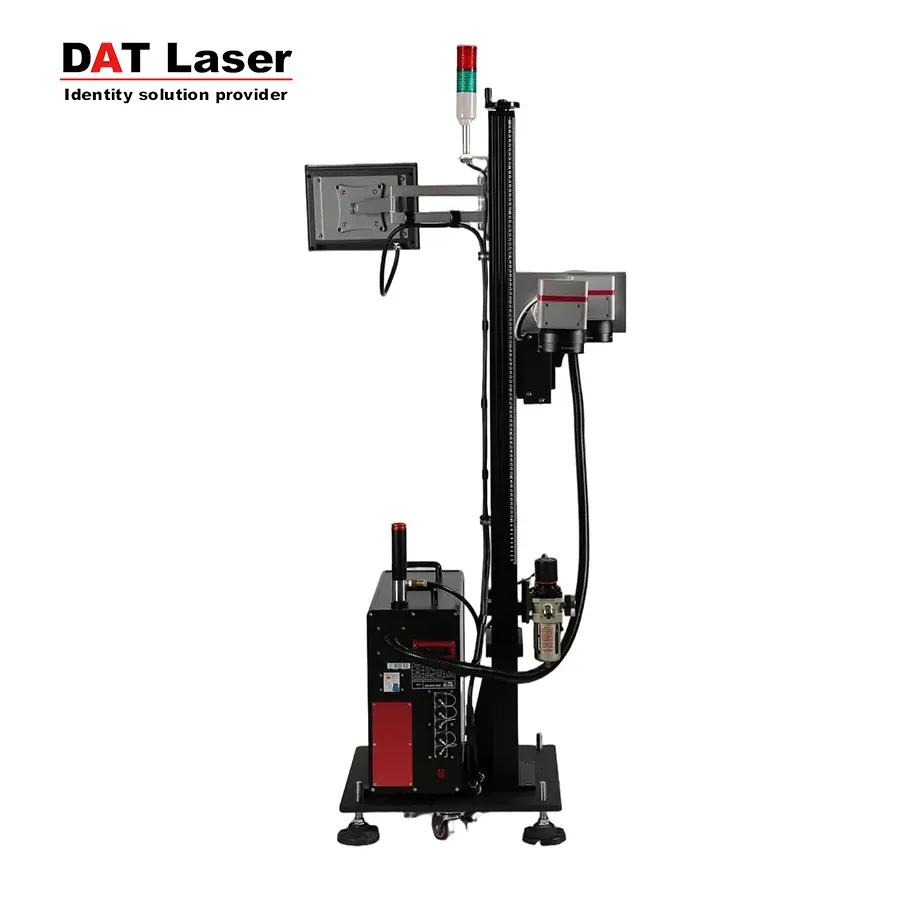

30W/50W Double-head Flying Fiber Laser Engraving Machine

Name: 30W/50W Double-head Flying Fiber Laser Engraving Machine
Brand: HeBei Datang Laser Technology Co., Ltd.
Availability: InStock

YLPF-50BT/YLPF-30T/YLPF-50T/YLPF-30TS/YLPF-50TS

DAT Doubl-head type can achieve dual line marking simultaneously, but delivery same engraving speed, content and effect with the single-head. They are ideal choice for Dual production lines, double-heade extruders, and two single production lines with smaller spacing. Saving your cost for purchasing.

Optimized operating system ensures the high definition and precision of marking effects for double-line under high-speed production.

Features Applications Specifications Advantage Download Brochures Relate Products

Features of 30W/50W Double-head Flying Fiber Laser Engraving Machine

Professional and leading operating System with Independent Self-service Intellectual Property.
Friendly Operating Interface easy to learn and use, 5 minutes is enough for training and proficiency in use.
Permanent Marking,anti-fake.
Durable in use,lifetime (100, 000 hours).

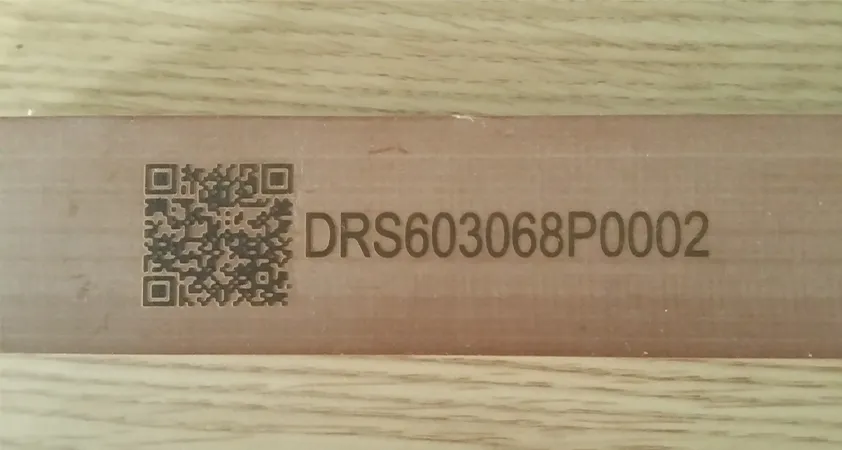

Text,LOGO,Barcode,Qr code can be marked

a).Characters ,digital, series NO, Date code supported.

b).Common types of images are supported. (bmp, jpg, tga, png…).

c).Common vector images are supported. (ai, dxf, dst, plt…).

d).Flexible variable text : changes the text real time while in laser processing.Excel data sheet is supported.

e).Reserved for digital input port,and connect the emergency stop signal line,enabling the identification of the production line with fully synchronized.

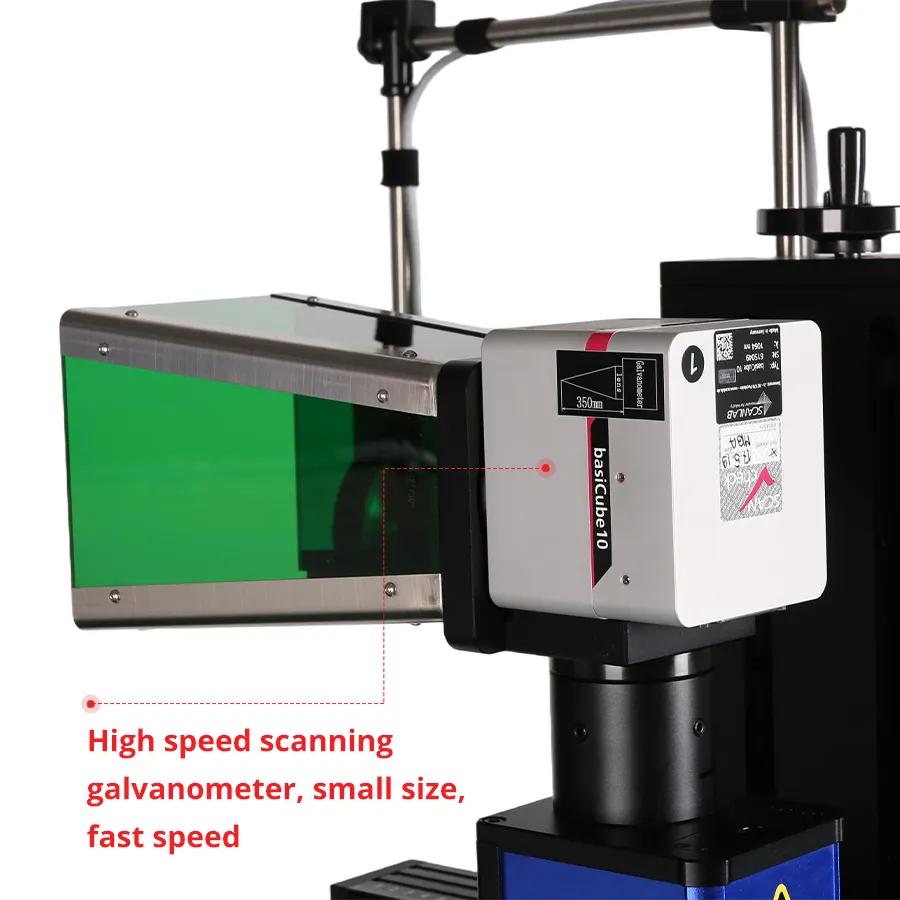

Features of 30W/50W Double-head Flying Fiber Laser Engraving Machine

Applications Scenarios of 30W/50W Double-head Flying Fiber Laser Engraving Machine

Applicable Industries

Fiber laser marking machines have extensive applications in multiple fields. It is not only applicable to marking on metal materials such as stainless steel and carbon steel, but also to marking on non-metal materials like plastic. Meanwhile, this equipment also performs well in marking opaque materials such as engineering plastics, providing a comprehensive solution for marking various materials.

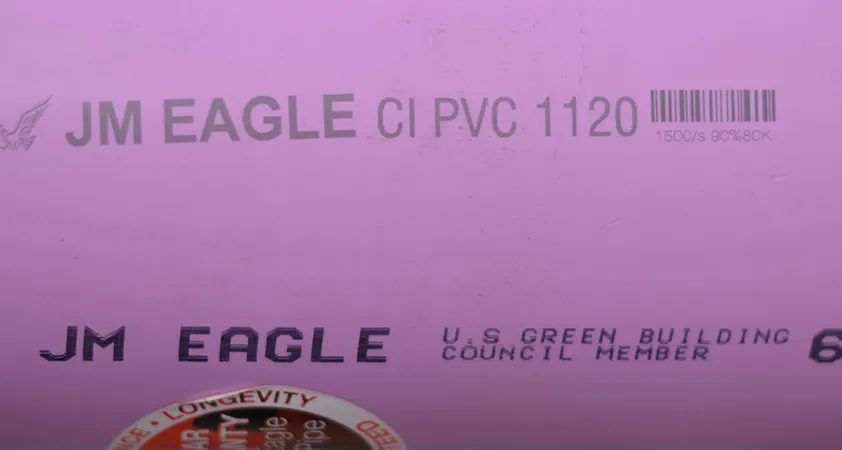

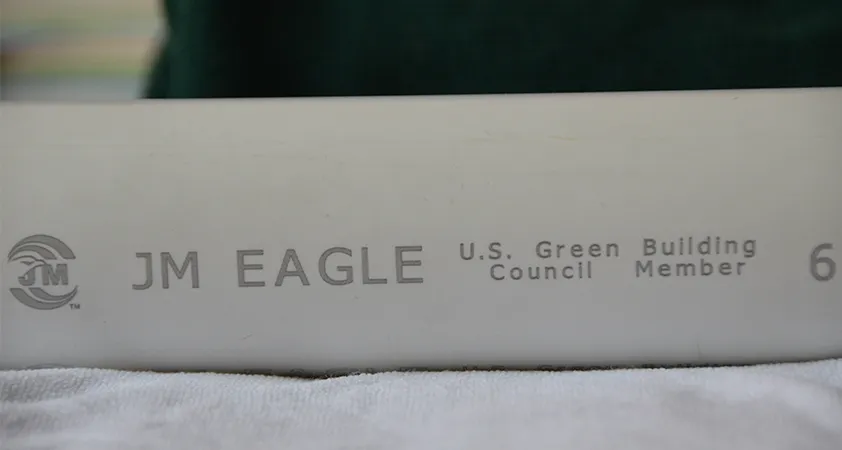

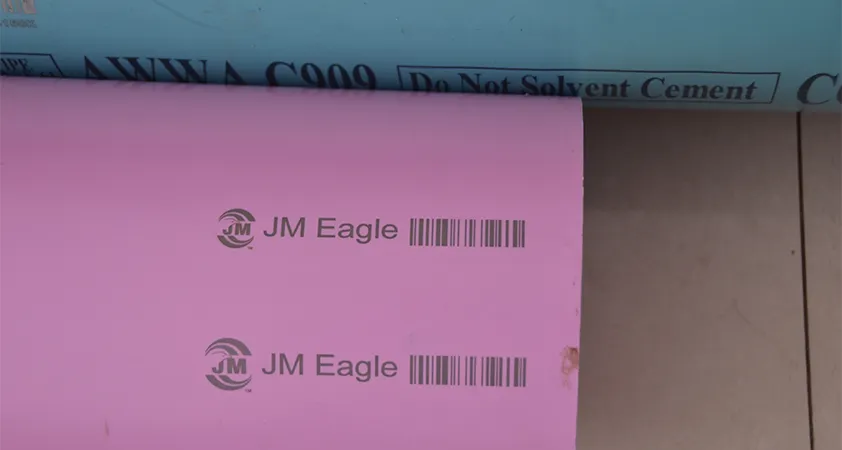

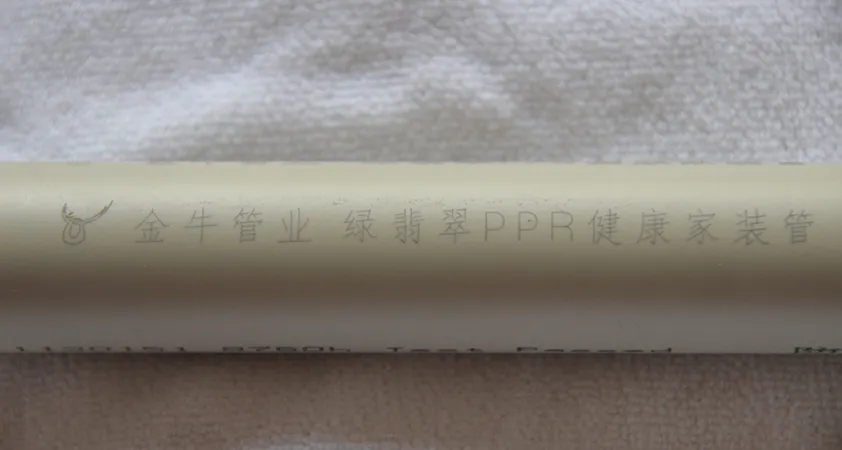

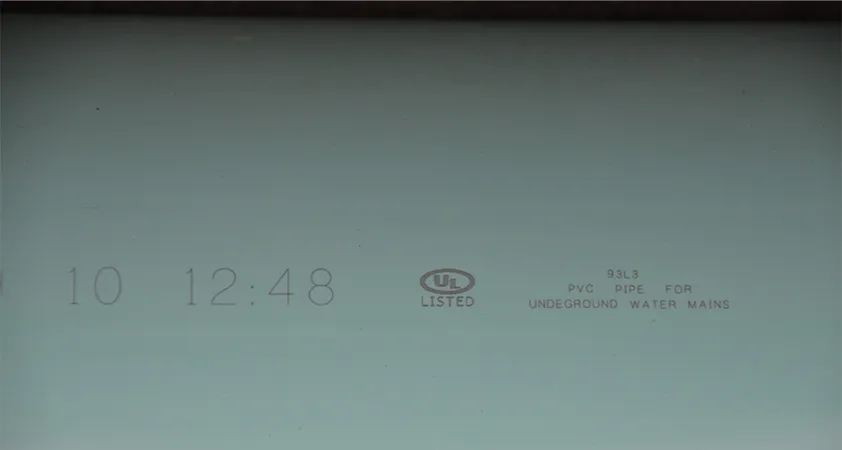

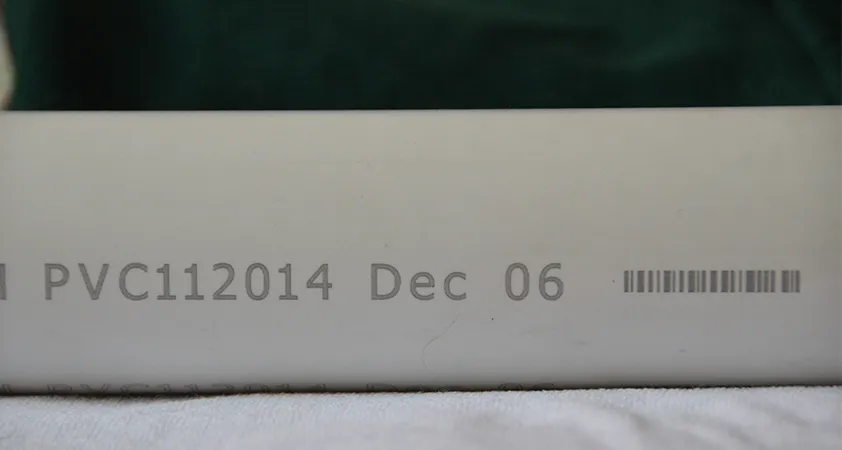

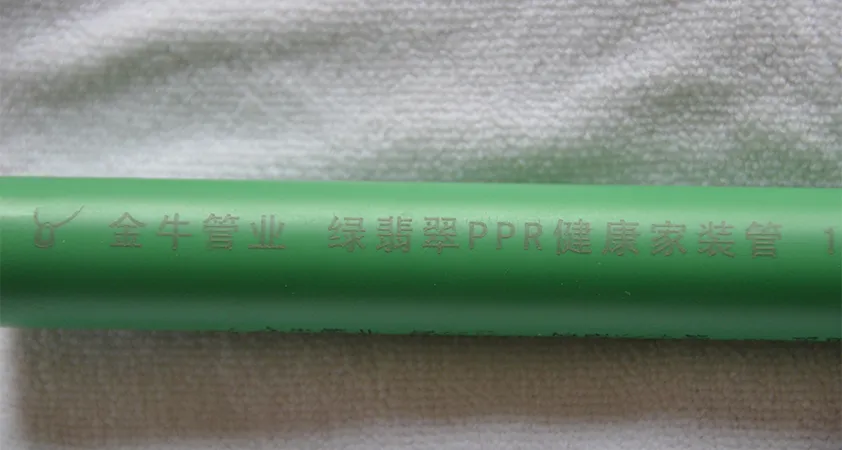

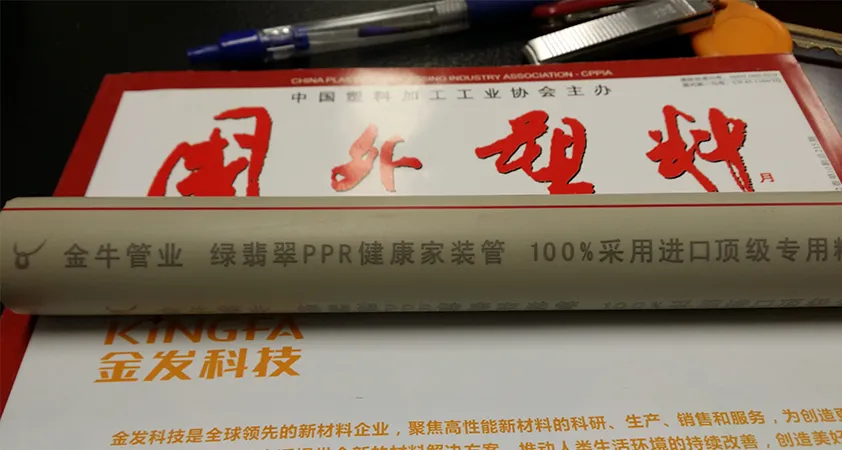

Engineering plastics: such as PVC, PE and other plastic pipe materials. Permanent marking of serial numbers, anti-counterfeiting codes, etc.
Automotive industry: such as permanent marking of serial numbers, logos, etc. on automotive parts.
Hardware and electronics industry: Common application cases include fine marking of electronic components, integrated circuits and circuit boards, etc.
Home appliance and kitchenware industry：common application cases include fine markings such as trademarks and usage instructions on the shells of household appliances.
Jewelry and watch industry: An ideal choice for fine patterns such as serial numbers on the back of watches and jewelry trademarks.

Specifications of 30W/50W Double-head Flying Fiber Laser Engraving Machine

Technical Specification
Marking Parameters	Line Speed	0.1-30m/min
	Minimum Character	0.2mm
	Minimum Line Width	0.05mm
	Repetition Accuracy	±0.003mm
	Engraving Linear Speed	≤7000mm/s
Laser Features	Type / Wavelength	Fiber Laser / 1064nm
	Output Power	30W, 50W
	Power Stability (8H)	<±1% rms
	Beam Quality M2	< 2
	Repetition Frequency	20kHz ～ 200kHz
Working Environment	Cooling	Air cooling
	Operating Temperature	15℃ ~ 45℃
	Humidity Requirement	40% ～ 80%, non-condensing
	Power Requirement	110V~220V/50~60Hz/5A
	Total Power Consumption	≤ 500 w
Size	Width 650mm × Length650mm × Height 1316 mm
Weight	≤ 150 Kg

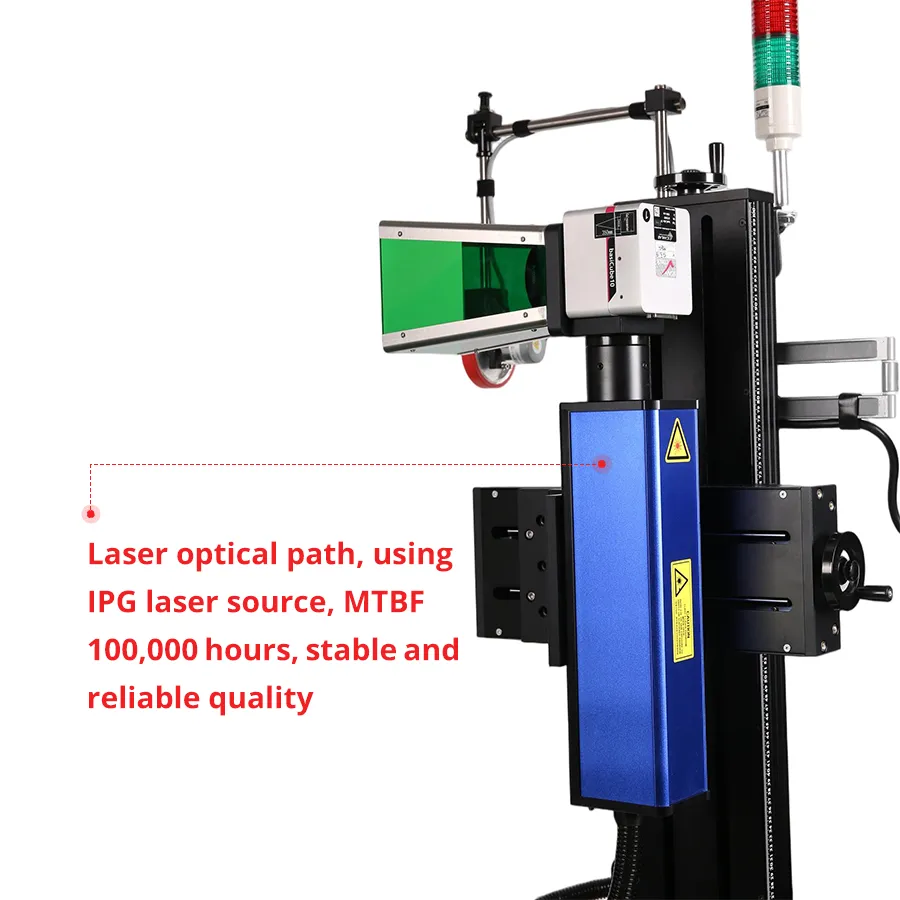

Parts description	Adopts IPG fiber laser and Germany scan lens, self-development systerm.

Advantage of 30W/50W Double-head Flying Fiber Laser Engraving Machine

Professional and leading operating system with independent Self-service Intellectual property.
Friendly Operating Interface easy to learn and use, 5 minutes is enough for training and proficiency in use.
Permanent Marking, anti-fake.
Durable in use, lifetime (100, 000 hours).
Text, LOGO, Barcode, Qr code can be marked.

a).Characters, digital, series NO, Date code supported.

b).Common types of images are supported. (bmp, jpg, tga, png…).

c).Common vector images are supported. (ai, dxf, dst, plt…).

d).Flexible variable text: changes the text real time while in laser processing. Excel data sheet is supported.

e).Reserved for digital input port, and connect the emergency stop signal line, enabling the identification of the production line with fully synchronized.
