The design concept of CO2-F55 series is to process complex code at high speed, with a marking speed of 0.1-35/min, which can keep up with the majority of production lines. And accurately engrave the production date, expiration date's text, barcode information, logo and other traceability information.
The design concept of CO2-F55 series is to process complex code at high speed, with a marking speed of 0.1-35/min, which can keep up with the majority of production lines. And accurately engrave the production date, expiration date's text, barcode information, logo and other traceability information.

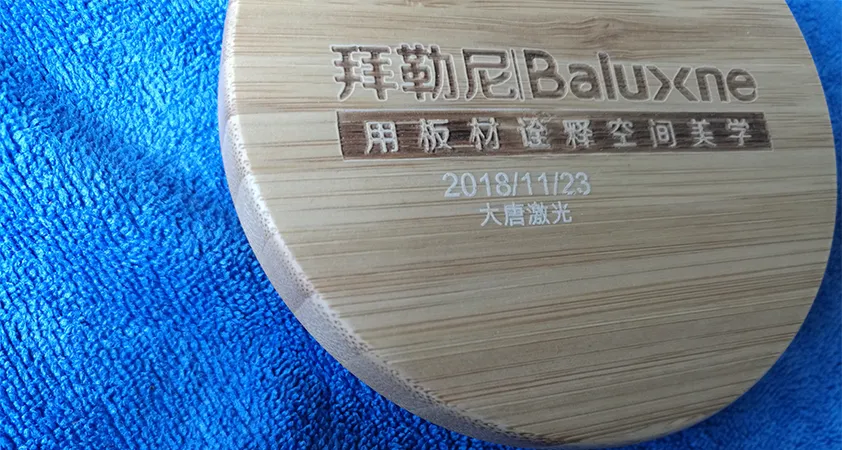

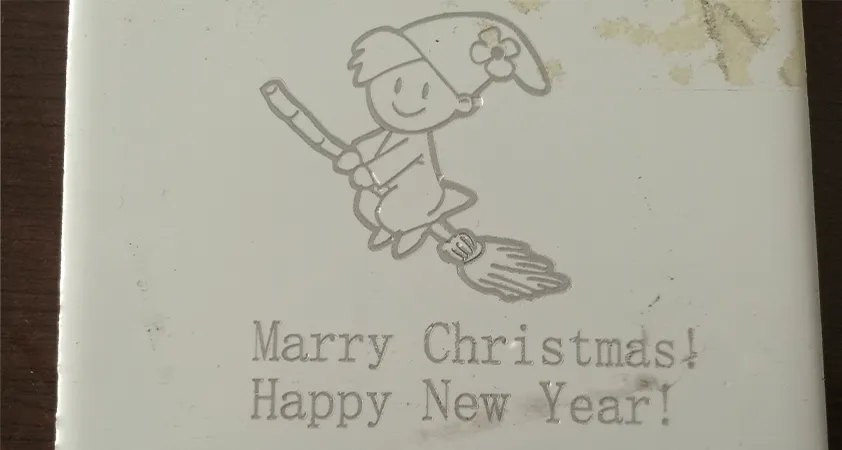

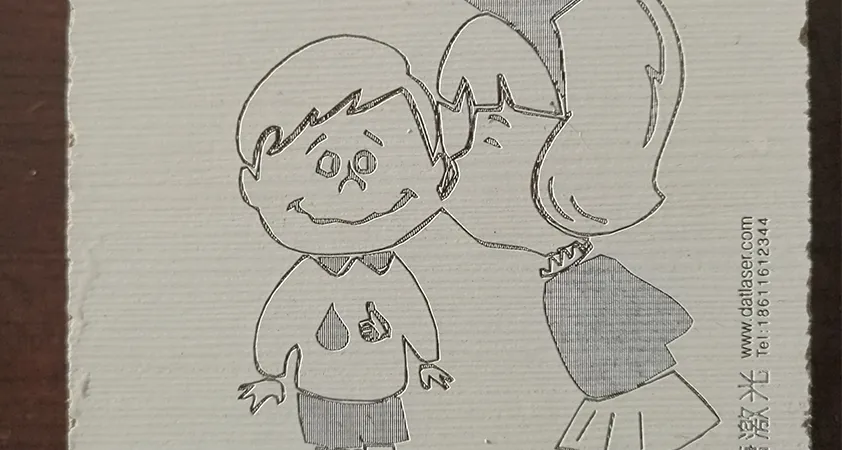

Suitable for marking and carving of leather, cloth, wood, plastic, marble, jade, crystal and other non-metallic materials.
Small Focus spot: the light spot is of good quality, the focus light spot is small, to achieve fine marking.
Fully closed optical path and double dustproof design are adopted to protect the core optical devices and ensure the long-term stable operation of the equipment.

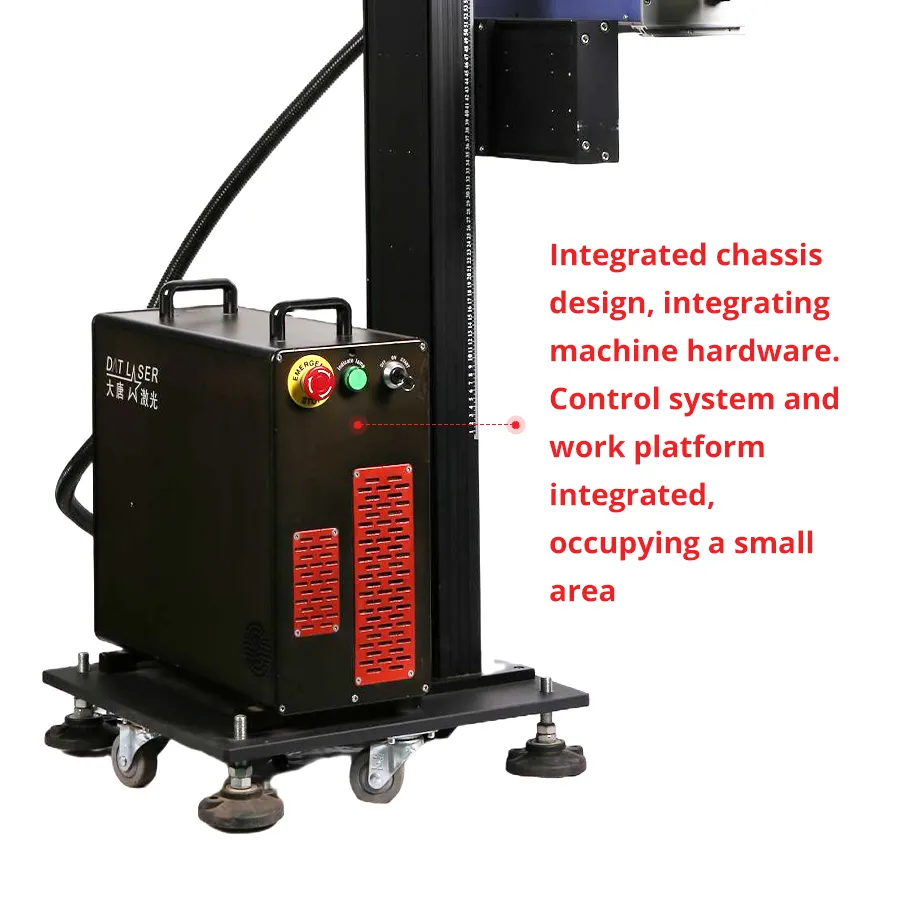

The equipment has a compact structure and easy maintenance.
The long life of the laser reduces the frequency of equipment replacement and reduces the cost of long-term use.
Technical Specification | ||
Marking Parameters | Line Speed | 0.1-30m/min |
Minimum Character | 0.2mm | |
Minimum Line Width | 0.05mm | |
Repetition Accuracy | ±0.003mm | |
Engraving Linear Speed | ≤7000mm/s | |
Laser Features | Type / Wavelength | CO2 Laser / 10.55μm~10.63μ |
Output Power | 30W, 55W | |
Power Stability (8H) | ＜±5% | |
Beam Quality M2 | < 2 | |
Working Environment | Cooling | Air cooling |
Operating Temperature | 15℃ ~ 45℃ | |
Humidity Requirement | 40% ～ 80%, non-condensing | |
Power Requirement | 110V~220V/50~60Hz/5A | |
Total Power Consumption | ≤ 500 w | |
Size | Width 650mm × Length650mm × Height 1316 mm | |
Weight | ≤ 150 Kg | |

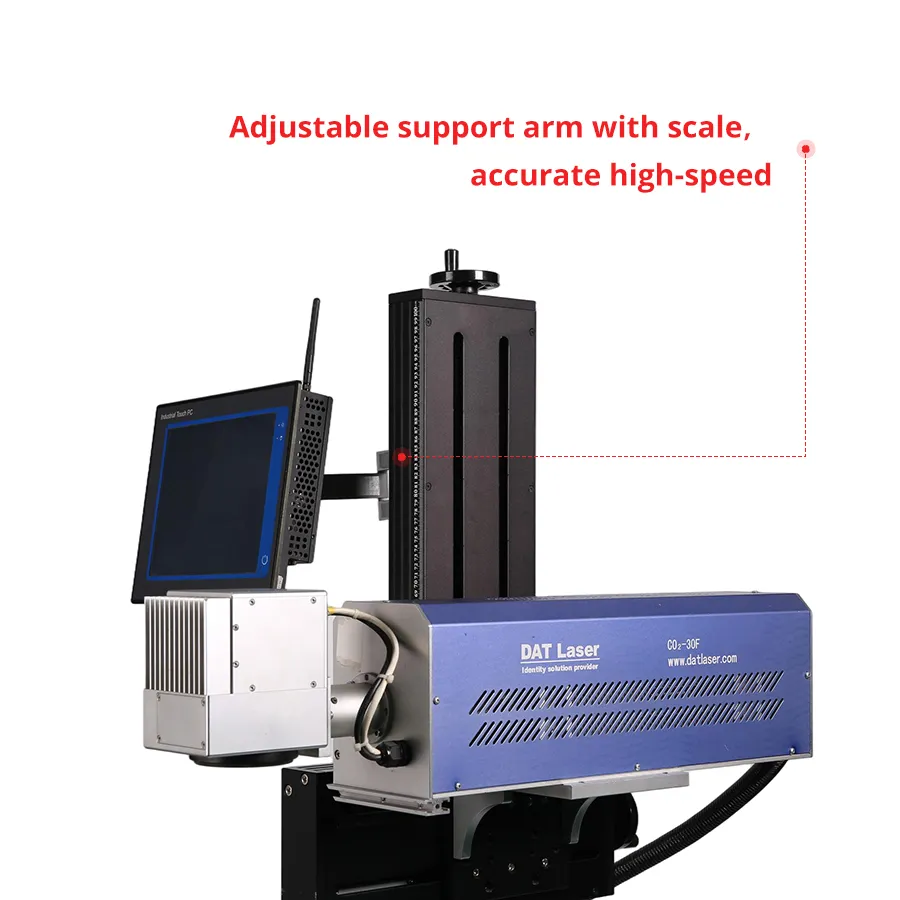

Stable and high-resolution engrave head support high-quality and permanent marks to achieve product traceability and anti-counterfeiting.
Laser sources has a long&stable working life, which can extend the service life of machines, improve reliability, and reduce additional operating costs for you.
Various models and configurations make it easy for you to equip machines at different prices for different products, saving your unnecessary costs and being highly economical.
Specially designed for 24/7 operation in medicine, food and beverages line.
Engraving complex code information such as text, barcode, QR-code,logo,graphics, and other information under high-speed production.
