With shorter wavelengths and lower power than fiber and CO2 lasers, UV laser is very effective in marking various materials with poor marking effects on optical fibers and CO2, including plastics, films and foils, ceramics, and rubber.

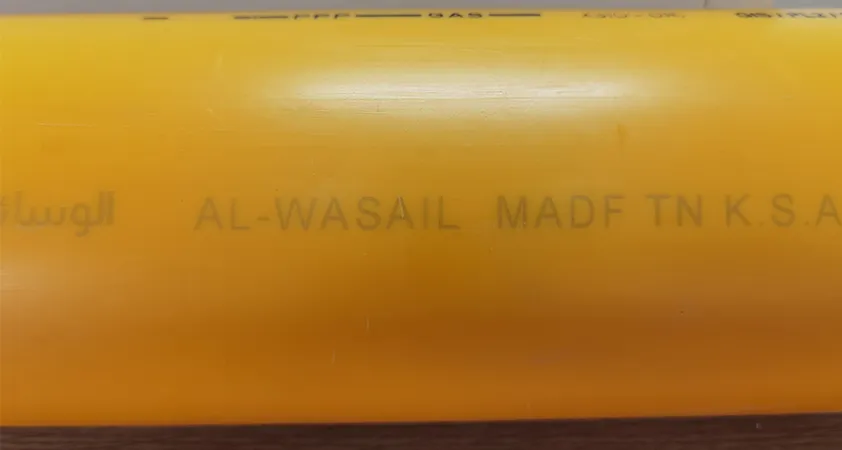

UV Flying Laser engraving machine has no limited in colors of product,white,yellow,green all be can engraved very well.
With shorter wavelengths and lower power than fiber and CO2 lasers, UV laser is very effective in marking various materials with poor marking effects on optical fibers and CO2, including plastics, films and foils, ceramics, and rubber.
UV Flying Laser engraving machine has no limited in colors of product,white,yellow,green all be can engraved very well.
Professional and leading operating System with Independent Self-service Intellectual Property.
Friendly Operating Interface easy to learn and use, 5 minutes is enough for training and proficiency in use.
Permanent Marking,anti-fake.
Durable in use,lifetime (100, 000 hours).
Text,LOGO,Barcode,Qr code can be marked
a).Characters ,digital, series NO, Date code supported.
b).Common types of images are supported. (bmp, jpg, tga, png…).
c).Common vector images are supported. (ai, dxf, dst, plt…).
d).Flexible variable text : changes the text real time while in laser processing. Excel data sheet is supported.
e).Reserved for digital input port, and connect the emergency stop signal line, enabling the identification of the production line with fully synchronized.
Specification | UV-F03 | UV-F05 |
Fundamental Center wavelength | 355nm | |
Output power and Energy | >3W, ＞70 μJ@50KHZ | >5W, ＞10 μJ@50KHZ |
Repetition rate | 20KHZ-200KHZ | |
Pulse width | <22ns@50KHZ | <18ns@50KHZ |
Spatial mode | TEM ∞（M2 ≤1.2） | |
Beam divergence | ≤2mard | |
Astigmatism | <0.2 | |
Beam circularity | ≥90% | |
Polarization Ration | >100.1 | |
Polarization direction | Horizontal | |
Beam pointing stability | <25 μrad/℃ | |
Pulse energy stability | ≤3%RMS | |
Power stability | ≤3%RMS | |
Long-termpointing stability | <25 μrad/℃ | |
External comms | RS-232 | |
Beam diameter,03m in front of laser | ≤10mm | |
Working material | Nd: YVO4 | |
Warm-up time | <15min | |
Operating temperature | + 10℃ to +45℃ | |
Operating humidity | <65% | |
Non-operation（storage）temperature | -10℃ to +45℃ | |
Shiping temperature（Non-condensing） | -10℃ to +45℃ | |

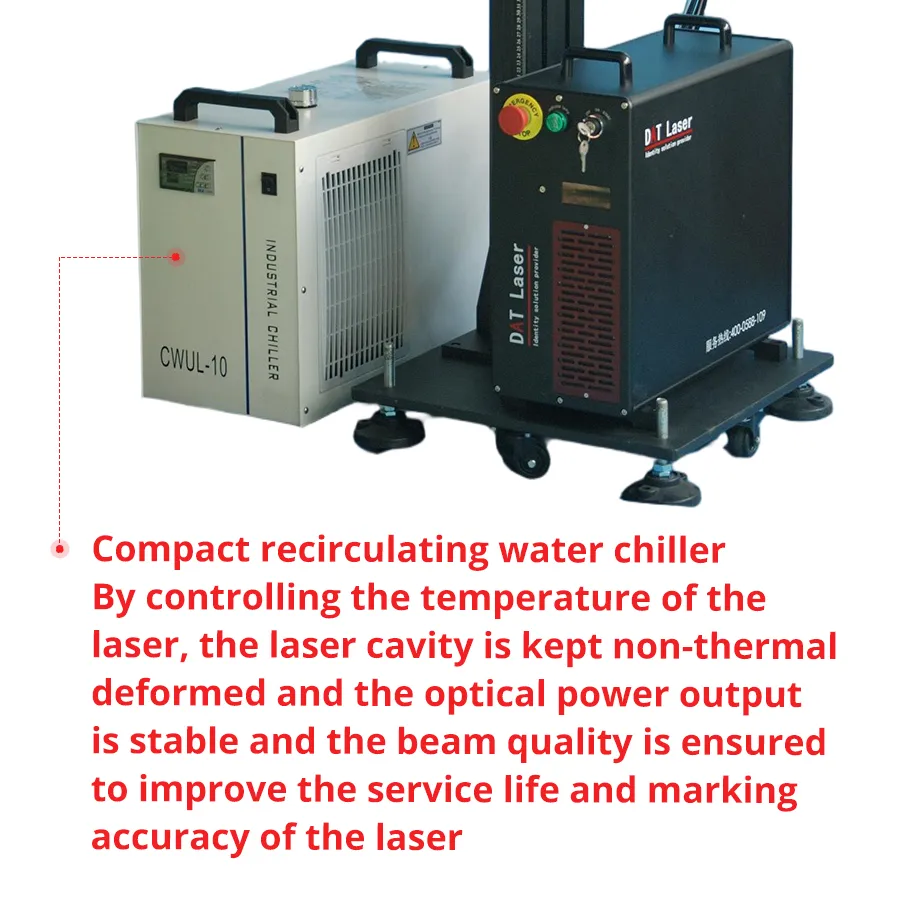

Cooling method | Water | |
Power consumption（VAC） | 110/220VAC, 50/60HZ, 600W | |
Classification | Class 4 | |
Head Weight | 19.5KG | |
Total marking machine weight | 170KG | |

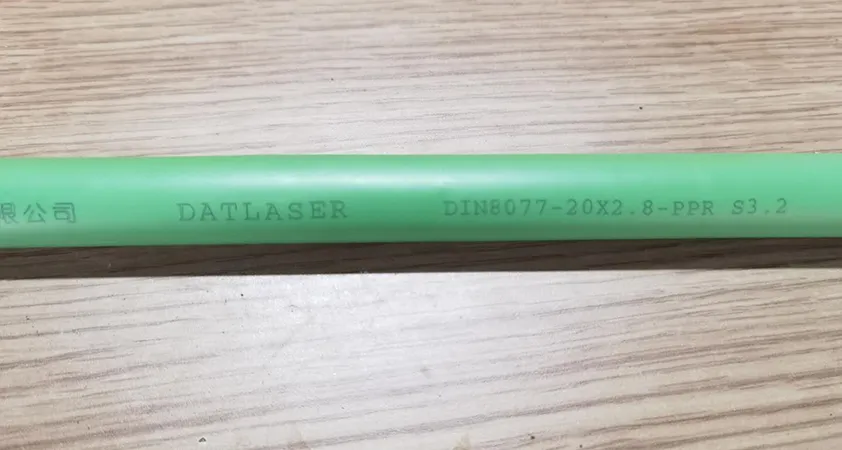

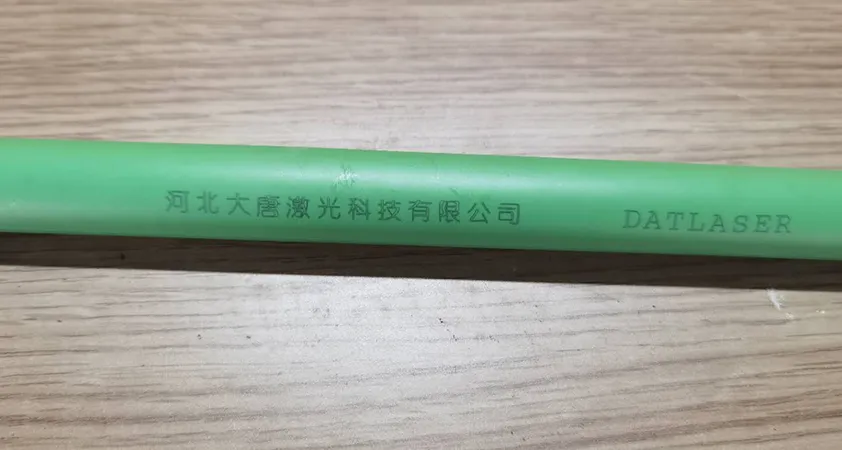

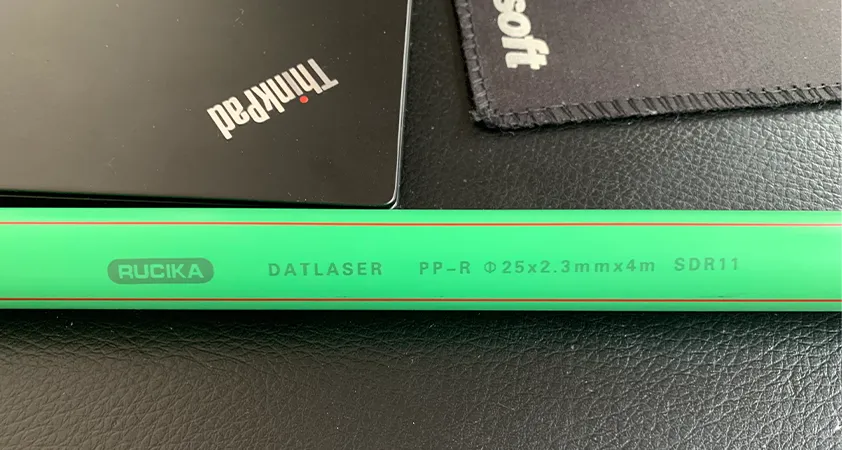

UV wavelength enables high speed marking-on-the-fly of plastic&mental products to increase efficiency.

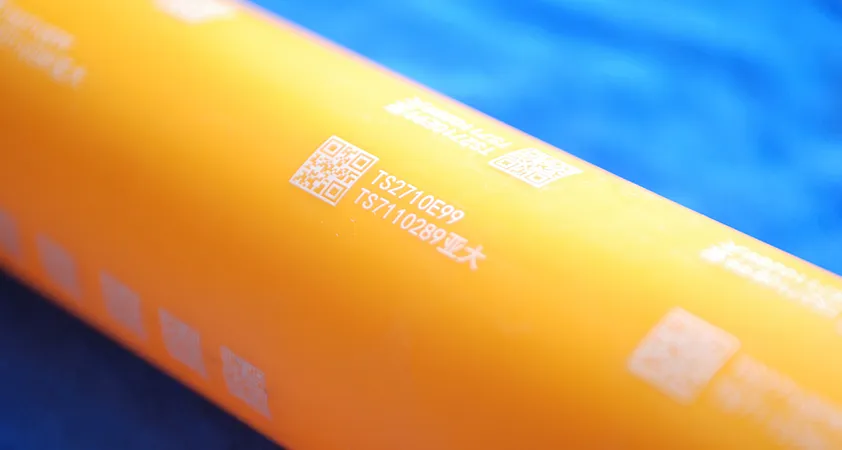

Engraving complex code information such as text, barcode, QR-code,logo,graphics, and other information under high-speed production.
UV wavelengths are used to mark materials that are insensitive to optical fibers and CO2 lasers, resulting in high resolution, high contrast, and clear marking effects.
No consumables to replace,saving your production cost.
Easy to maintain, time-saving and labor-saving. Avoid damage to the machine caused by misoperation which help increase uptime.
Various models and configurations make it easy for you to equip machines at different prices for different products, saving your unnecessary costs and being highly economical.
